LTMG

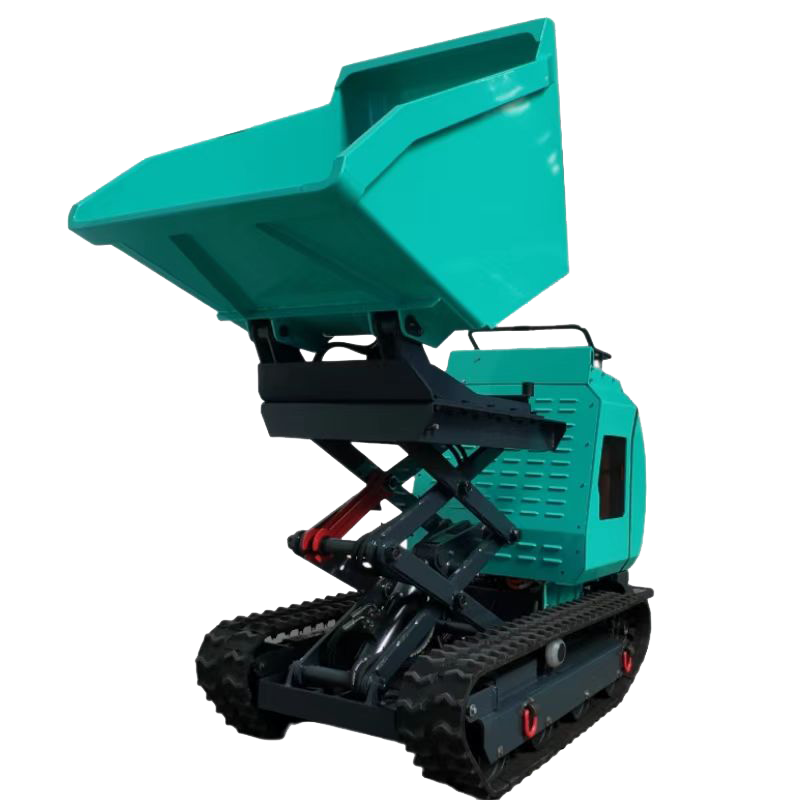

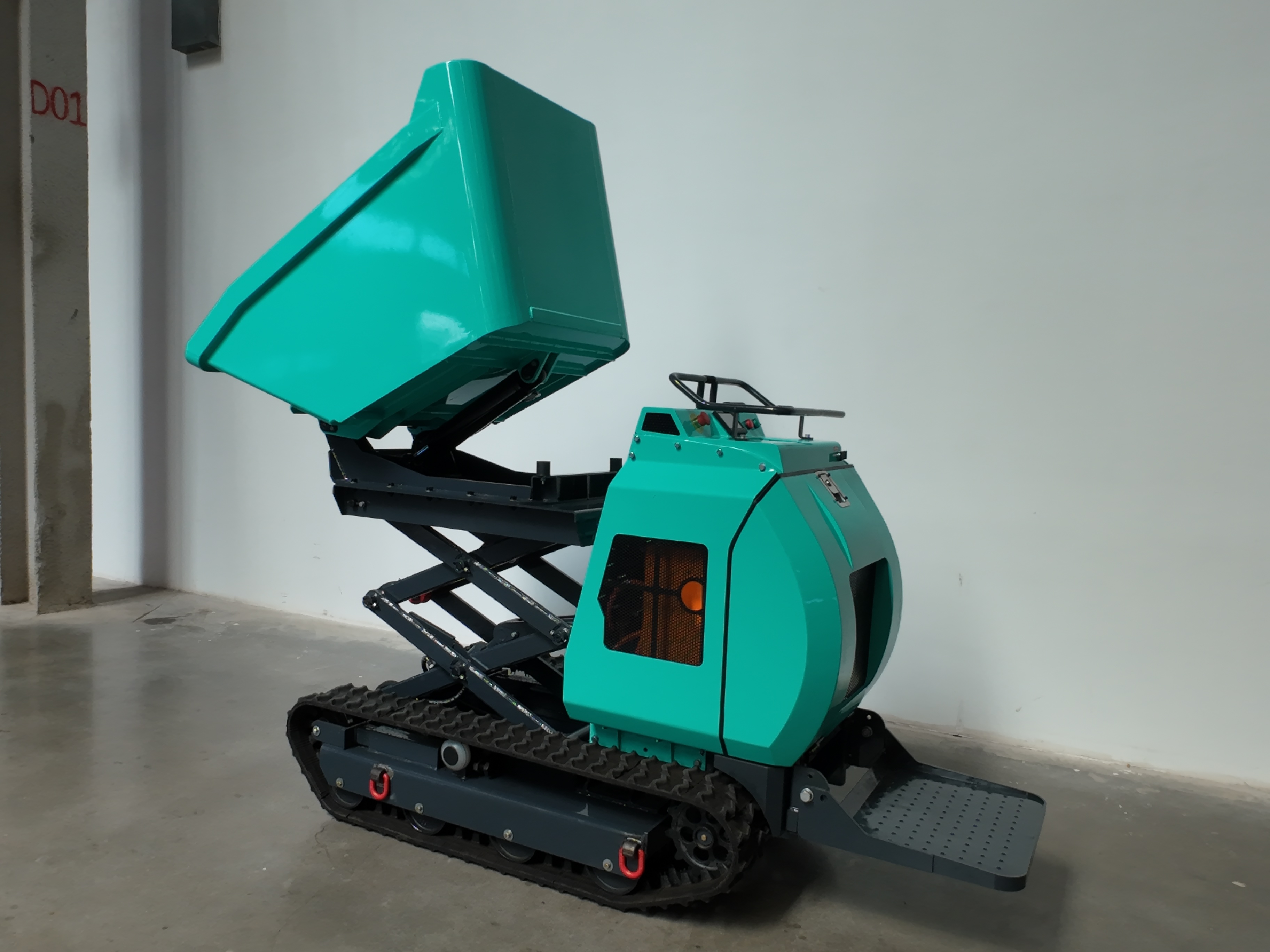

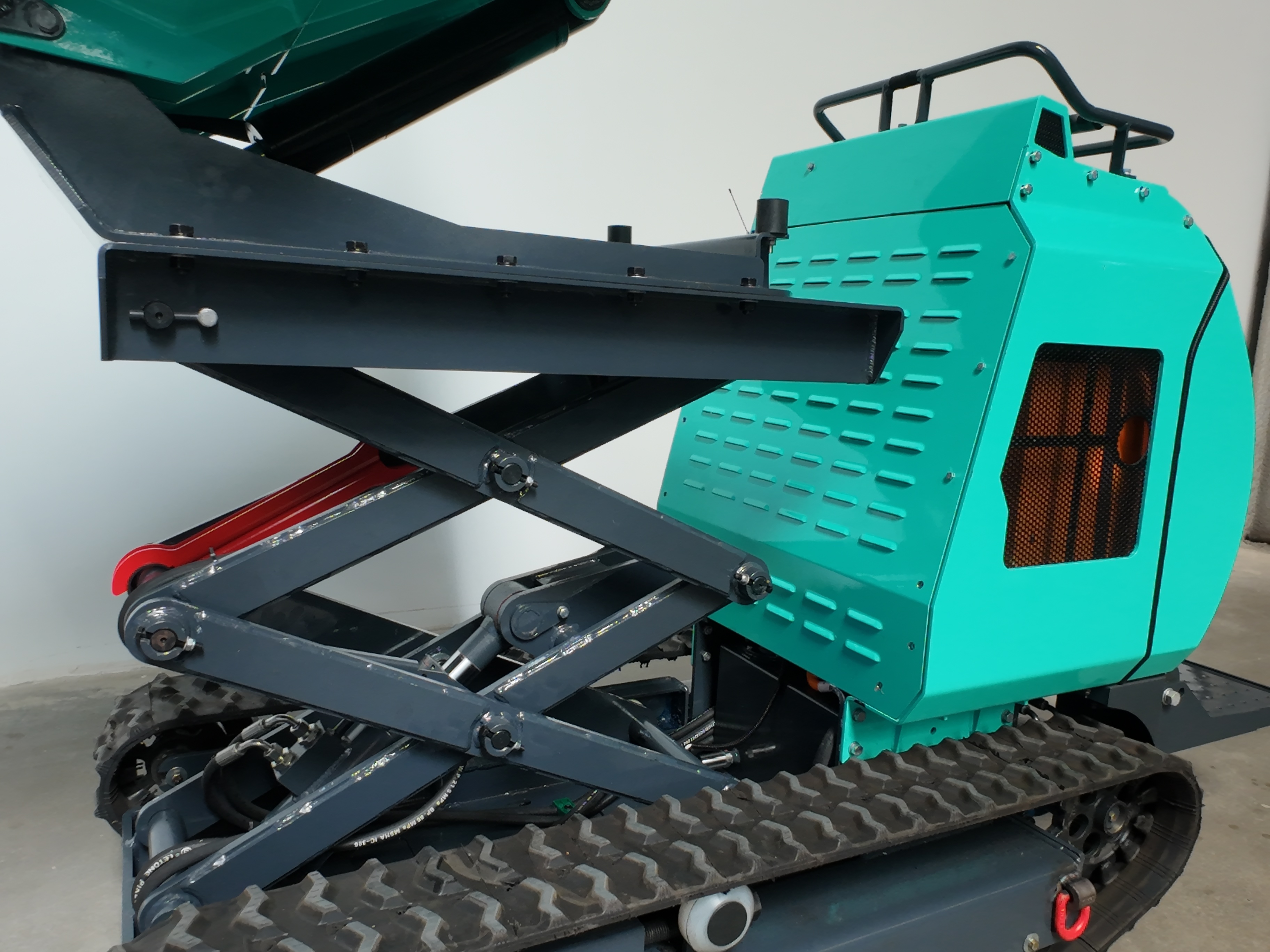

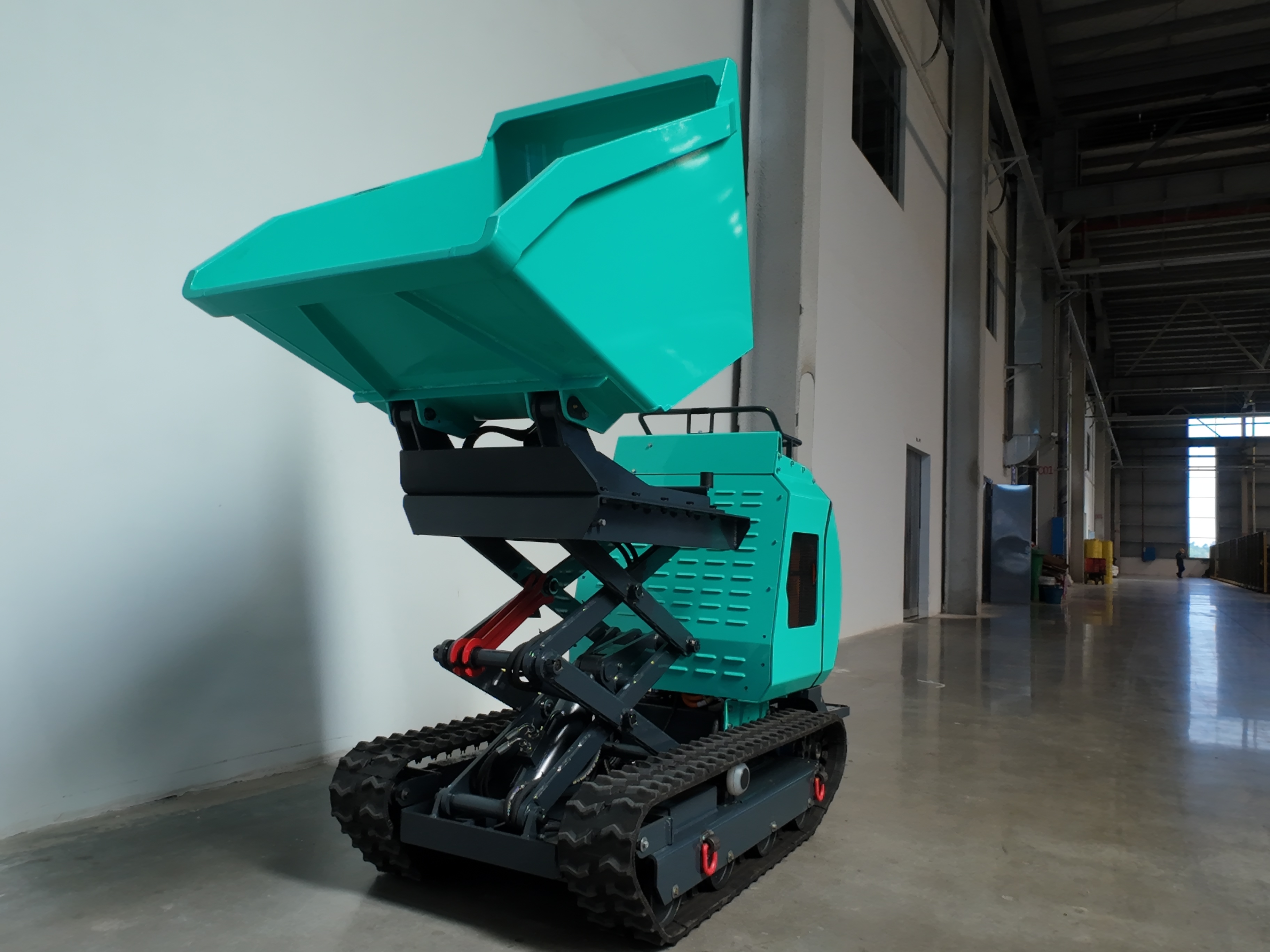

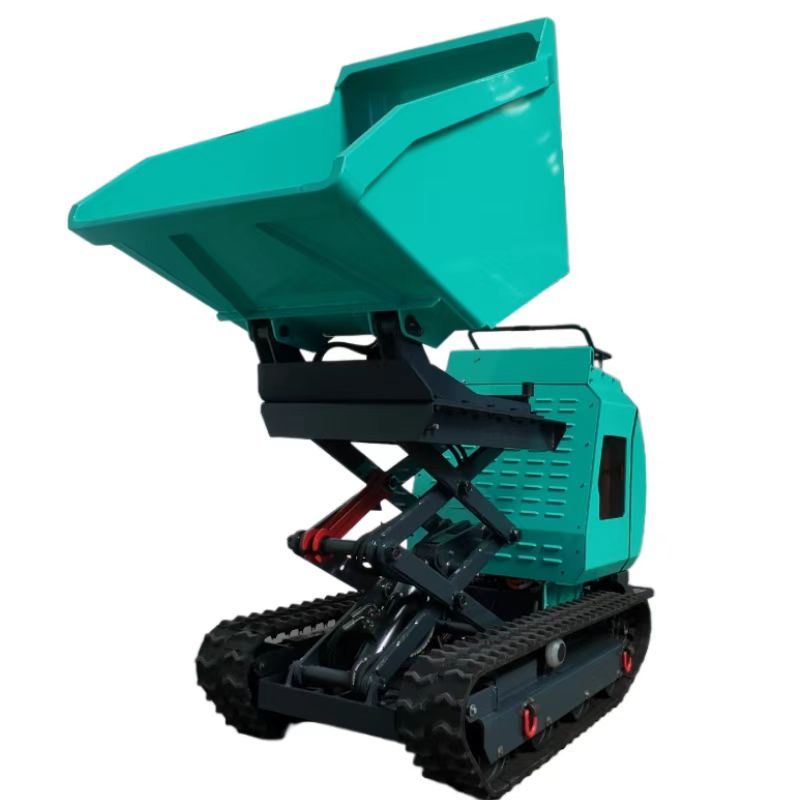

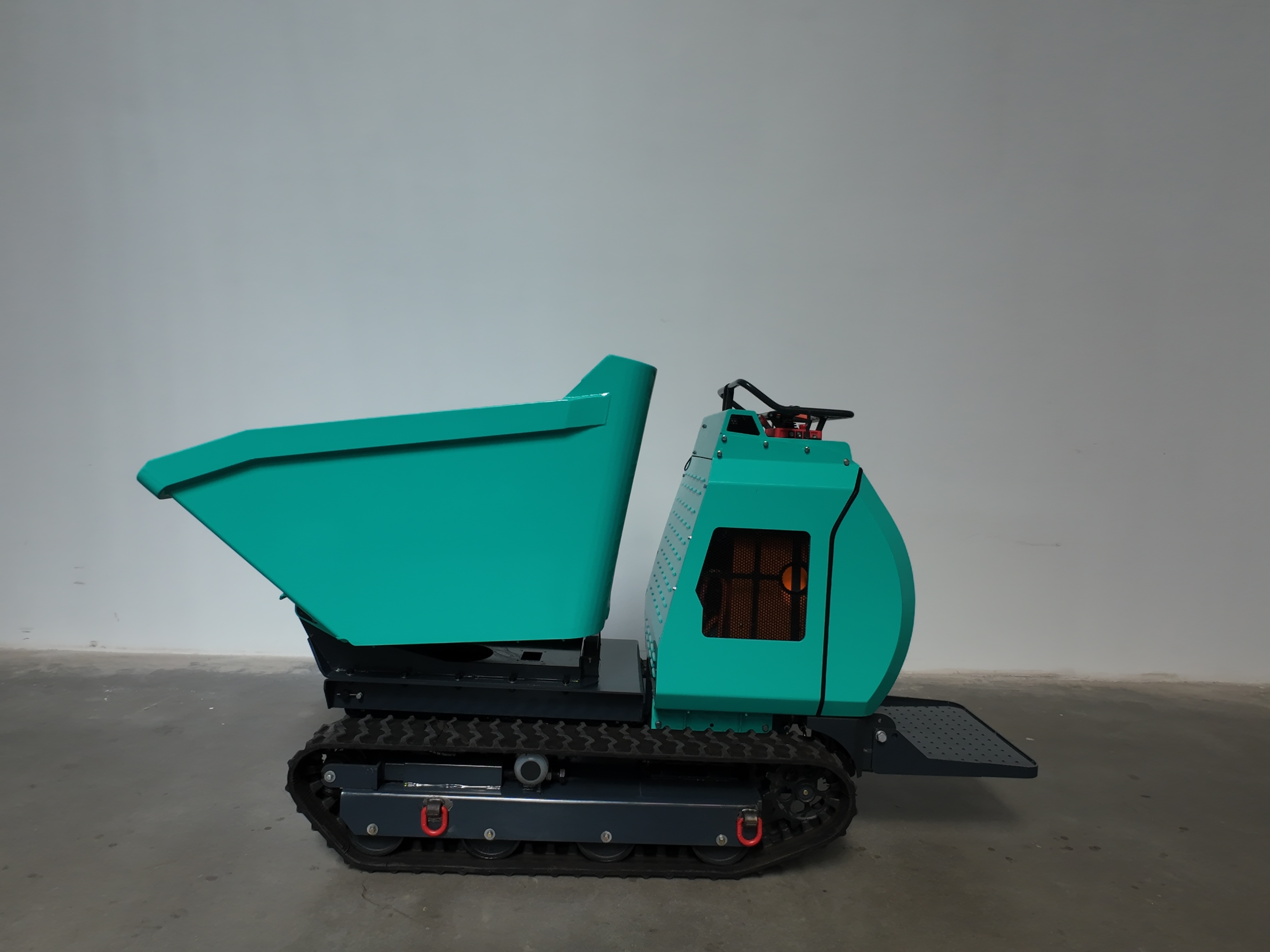

Mini Dumper RT100

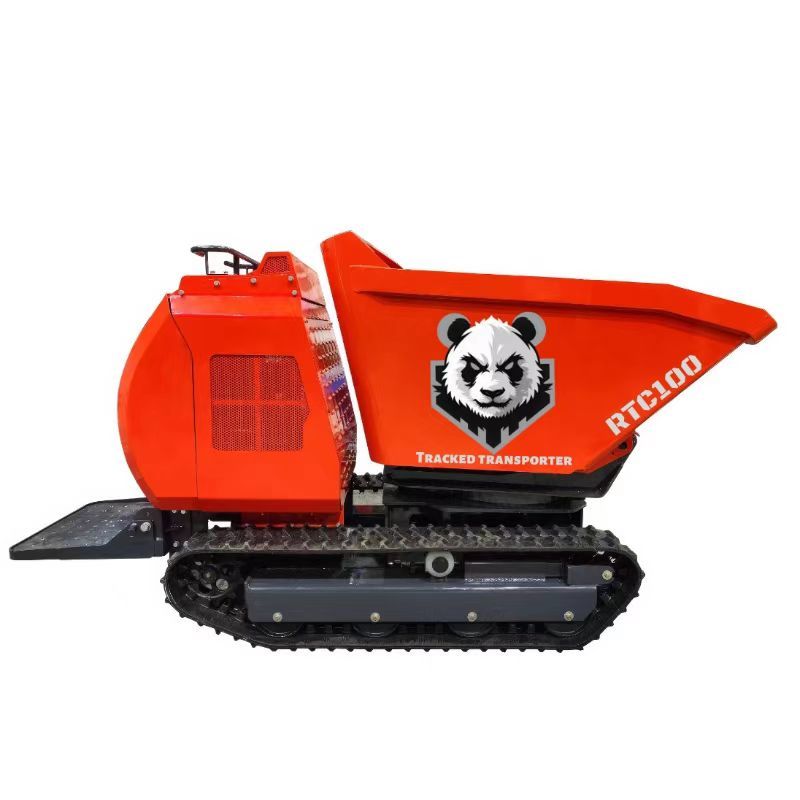

RTC100

Model

960kg

Operation Weight

0.5m³

Bucket Capacity

Mini Dumper RT100
Mini Dumper RT100
Mini Dumper RT100
Mini Dumper RT100
Mini Dumper RT100
Mini Dumper RT100
+
  • Mini Dumper RT100
  • Mini Dumper RT100
  • Mini Dumper RT100
  • Mini Dumper RT100
  • Mini Dumper RT100
  • Mini Dumper RT100

Share to

Tiktok youtube Ins Facebook Twitter Tumblr Pinterest

1、Small dump trucks feature engine-driven, electric hydraulic systems.
2、Compact size allows efficient operation even in narrow or hard-to-reach areas.
3、Easy to clean, lightweight and maneuverable.
4、Wide tracks reduce ground pressure, minimizing ground disturbance during work, ensuring a smoother ride and protecting both machine and operator.

Mobile :

+86 18574392003

WhatsApp :

‪+1 (312) 560‑8523‬

E-mail :

sale@oritron.com.cn

Inquiry
Hot Product
Send Emails
Download
  • Product Description
  • 多图切换右边

  • Product Description

    Efficient Power:
    13.5HP gasoline engine, high torque at low speed, excellent fuel economy.
    Heavy - duty Design:
    Reinforced frame structure, load - to - self - weight ratio up to 1.25:1 (load/self - weight).
    Compact and Flexible:
    Vehicle size of 2476×850mm, suitable for passage in 1m - wide narrow roads.
    Terrain Adaptation:
    25° slope climbing ability, strong passability in gravel/mud.
    Stable Handling:
    Low - center - of - gravity design, high anti - rollover coefficient for loaded goods.
    Intelligent Integration:
    Integrated control of electric joystick, LCD screen for transparent display of full - vehicle performance.

    Technical Parameters



    Engine
    Motor Power5.5KW AC
    Voltage48V
    Battery Capacity210AH
    Hydraulic System
    Hydraulic PumpGear Pump
    Displacement8ml/r
    Pressure16MPA
    Overall Performance and Dimensions
    Body Dimensions2069mm*850mm*1335mm
    Net Weight of Machine960KG
    Horizontal Transport Load Capacity1000KG
    Maximum Travel Speed4 Km/h
    Bucket Volume0.5 Cubic Meters
    Maximum Lifting and Dumping Height1.5 Meters
    Maximum Load for Lifting and Dumping500KG
    Crawler Width180mm
    Chassis Width850mm
    Climbing Ability25˚
    Usage Scenarios:
    Transport of earthwork, sand/gravel, and cement over short distances at construction sites.
    Agricultural Scenarios:
    Transport of crops/fertilizers in the field.
    Warehouse Logistics:
    Horizontal transfer of palletized goods.
    Mining Operations:
    Centralized disposal of ores/wastes.
    Garden Engineering:
    Designated - point delivery for orchards, gardens, and greenery.



  • 1、Small dump trucks feature engine-driven, electric hydraulic systems.
    2、Compact size allows efficient operation even in narrow or hard-to-reach areas.
    3、Easy to clean, lightweight and maneuverable.
    4、Wide tracks reduce ground pressure, minimizing ground disturbance during work, ensuring a smoother ride and protecting both machine and operator.
