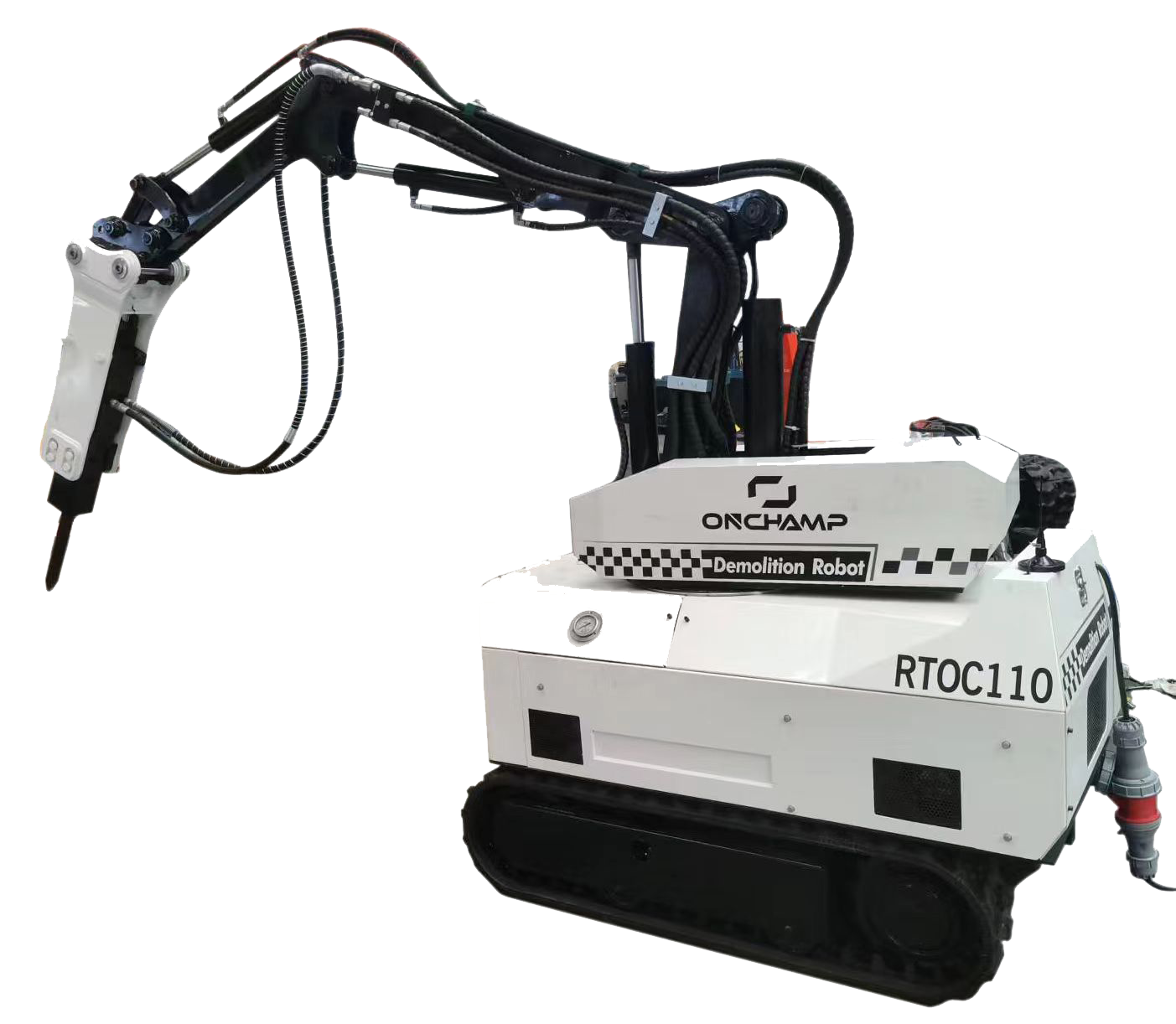

RTOC110 Demolition robot
RTOC110
Model
1200kg
Weight
11
Main motor power
Share to
-
Remote operation safety: Operators control the robotic arm remotely via a console or wireless device, equipped with attachments like breakers, hydraulic shears, and cutting saws, suitable for scenarios such as earthquake debris rescue, building demolition, hazardous material disposal, and mine roadway cleaning.
-
With a robust, durable structure and flexible operational performance, it can run stably in narrow spaces or harsh working conditions, enhancing the efficiency of emergency rescue and engineering demolition.
-
It features energy saving and emission reduction, without impacting the environment.
- Product Description
- 多图切换右边
-
Device Advantages
1、Powerful
The tool head has a powerful breaking and dismantling ability, and can easily perform the function of breaking hard objects.
2、The fuselage is compact, small-sized and flexible
It is light in weight and small in size, capable of walking and climbing slopes independently. It can easily access places where the load-bearing capacity of the space is limited, such as small trucks, elevators, residential houses, shopping malls and so on.
3、It is environmentally friendly during operation
It operates by using a storage battery or indoor power supply, which is energy-efficient and produces no exhaust gas. Moreover, it has a low noise level, so it won't disturb the residents
4、Safe and efficient
It features user-friendly remote control operation, ensuring safety and providing a good line of sight. With a three-arm structure, it allows for flexible and accurate positioning, and has a large working range
5、One machine with multiple functions
It can be equipped with a variety of tool heads such as hydraulic hammers and hydraulic clamps to meet the requirements of different jobs
It can serve as a mobile hydraulic station for indoor decoration
Technical parameters
ltem Specification requirements The robot body Weight (kg) 1200 Overalldimensions (mm) 1830*780*1570 Climbing ability (°) 30 Minimum ground clearance (mm) 100 Maximun walking speed (km/h) 2.4 Rotational speed (s/360°) 10 Chassis structure Electric motor crawler chassis Maximum working range (mm) 3700*4600 Hydraulic syster System pressure (mpa) 18 Rated current (L/min) 45 Main motor power (kw) 11 Capacity 40 Type of hydraulic pump Load-sensitive piston pump Main valve Electromagnetic directional valve Remote control /Remote controller Control mode Wireless remote control Remote control distance (m) ≥100 Remote control method Electric proportional linear control Control device Three-proof remote controller (equipped with an ergonomic shoulder strap) Signal mode Digital Electrical functic GPS,remote locking,remote positioning, background monitoring of equipment operation start-up time,monitoring of battery power,hydraulic oil temperature, hydraulic oil level,hydraulic oil filter replacement alarm. -
-
Remote operation safety: Operators control the robotic arm remotely via a console or wireless device, equipped with attachments like breakers, hydraulic shears, and cutting saws, suitable for scenarios such as earthquake debris rescue, building demolition, hazardous material disposal, and mine roadway cleaning.
-
With a robust, durable structure and flexible operational performance, it can run stably in narrow spaces or harsh working conditions, enhancing the efficiency of emergency rescue and engineering demolition.
-
It features energy saving and emission reduction, without impacting the environment.
-
