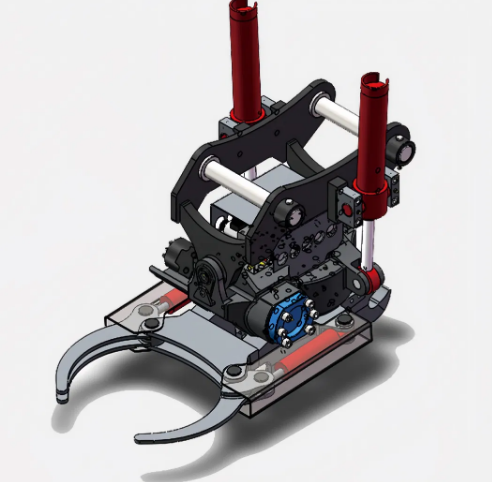

GTR series grapple
Category:
Key Word:
- Product Description
- 多图切换右边
-
Product Introduction

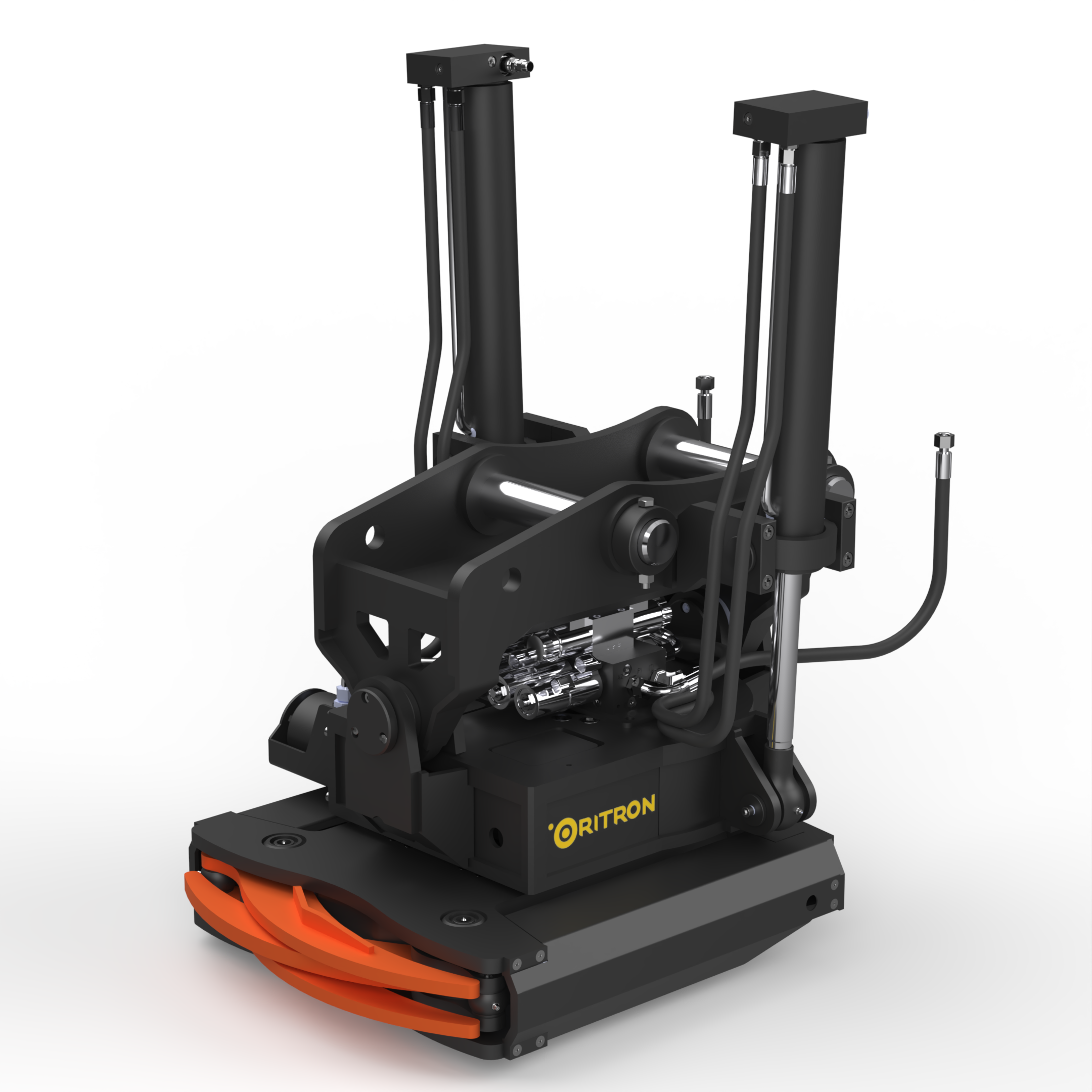

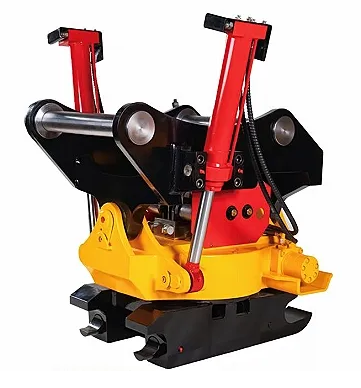

The excellence of the product lies in that the hydraulic universal quick-change coupler for this excavator has great advantages. It can switch attachments extremely quickly, improving construction efficiency; it has 360°full-range rotation and specific-angle swinging, adapting to complex working conditions; the hydraulic circuit is automatically connected, ensuring safety and convenience; it can perfectly fit all excavators ranging from 1 to 30 tons, meeting diverse engineering needs.
product technical parameters
Model GTR - 40 GTR - 50 GTR - 60 GTR - 70 GTR - 80 Applicable Excavator（T） 3.0 - 7.0 7.0 - 12.0 12.0 - 16.0 16.0 - 22.0 22.0 - 28.0 Pin Dia（mm） 40 50 60 70 80 Working pressure（MPa） 18.0 - 21.0
Working flow（L/min） 30.0 - 80.0 30.0 - 80.0 40.0 - 120.0 50.0 - 140.0 60.0 - 160.0 Max circuit pressure（MPa） 2.5
Quick coupler connector Dia G1/4 G1/2 G1/2 G3/4 G3/4 Weight（Kg） 188 315 554 790 960 Output Torque（N.m） 3600 8000 9800 10800 13500 Axial Load（kN） 60 120 180 220 260 Angle（°） ±360
Time（s） 7
Flow Rate（L/min） 25 - 40 40 - 50 60 - 80 70 - 80 80 - 110 Swing Torque（N.m） 4500 9000 13000 18000 25000 Angle（°） ±40
Time（s） 5

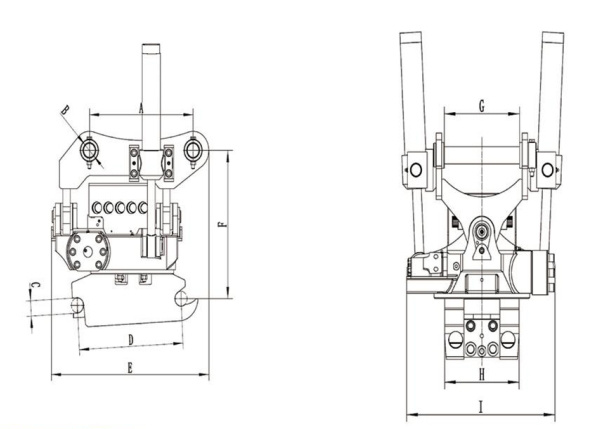

Flow Rate（L/min） 7.5 - 20 19 - 40 21 - 40 40 - 48 45 - 60 Width A（mm） 300 430 480 600 670 Width B（mm） 40 50 60 70 80 Width C（mm） 40 50 60 70 80 Width D（mm） 300 430 480 600 670 Width E（mm） 488 657 807 939 950 Width F（mm） 418 504 664 634 680 Width G（mm） 200 270 340 450 590 Width H（mm） 198 268 338 448 588 Width I（mm） 433 533 589 645 650 SWINGING CYLINDER TYPE TILTROTATOR

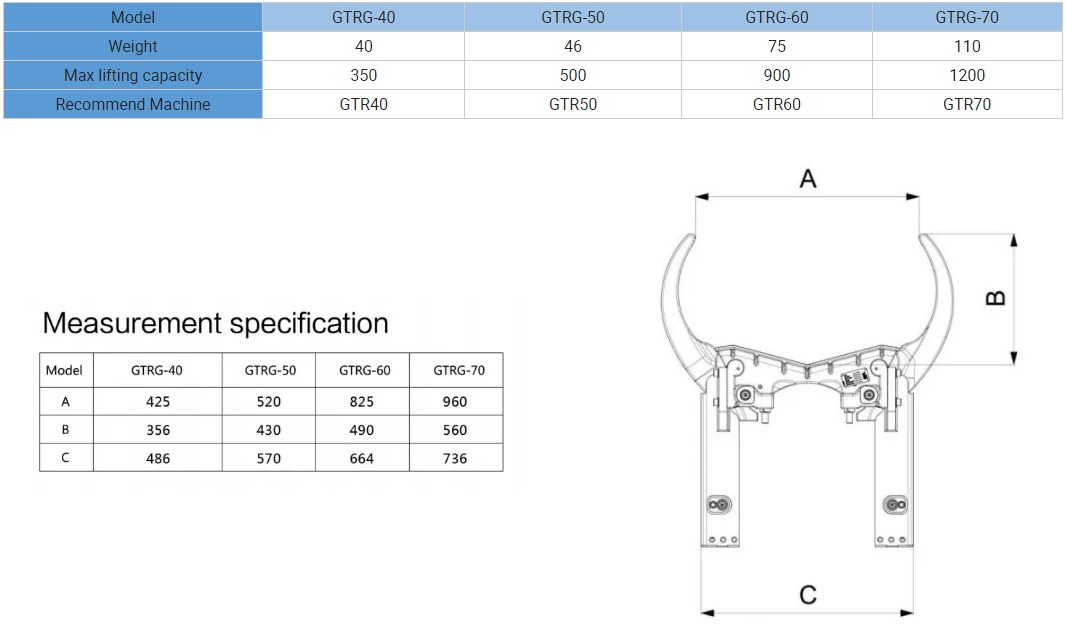

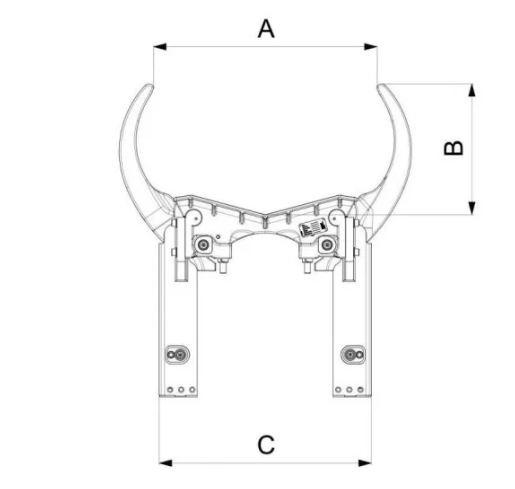

Model GTRG - 40 GTRG - 50 GTRG - 60 GTRG - 70 Weight 40 46 75 110 Max lifting capacity 350 500 900 1200 A 425 520 825 960 B 356 430 490 560 C 486 570 664 736 Recommend Machine GTR40 GTR50 GTR60 GTR70
