V-Ditching Buckets (Suitable For The Steelwrists/Lehnhoff System)
V-Ditching Buckets are excavator buckets with a V-shaped cross-section, suitable for agriculture, municipal construction, landscaping, etc.
Download
Category:
Key Word:
Excavator Bucket
Excavator Bucket
Excavator Bucket
excavator bucket
- Product Description
- 多图切换右边
-

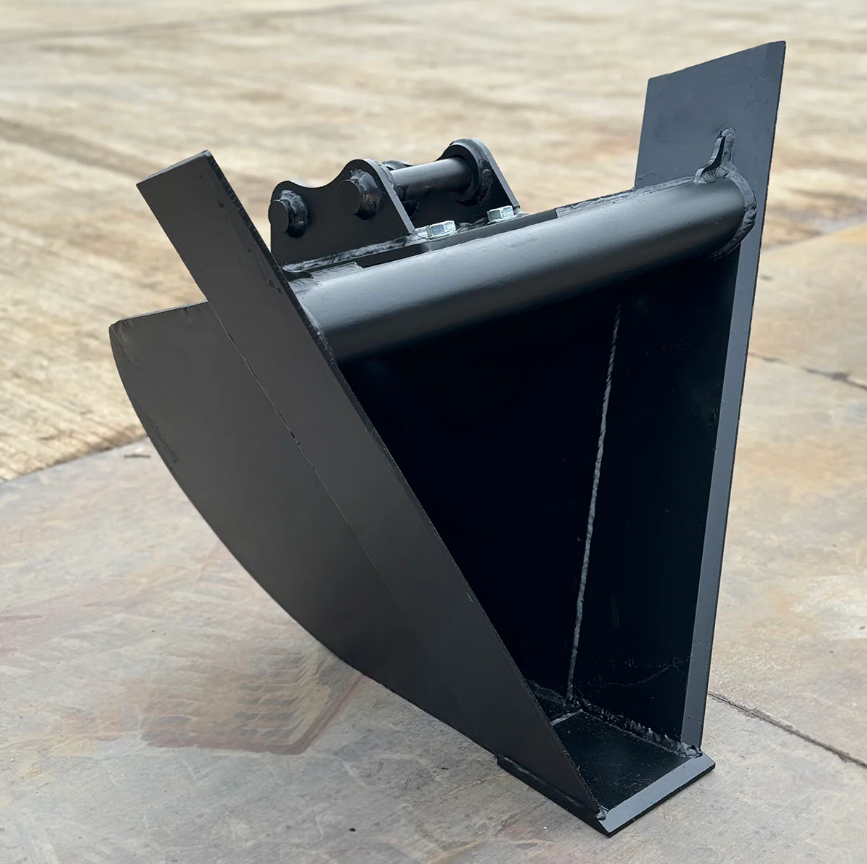

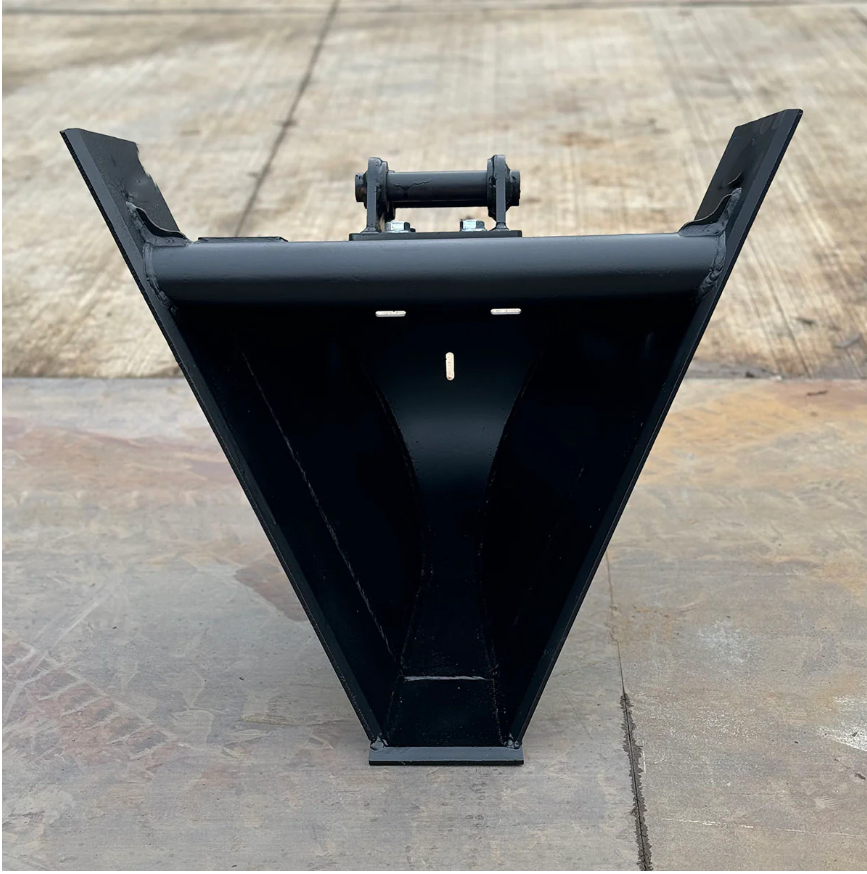

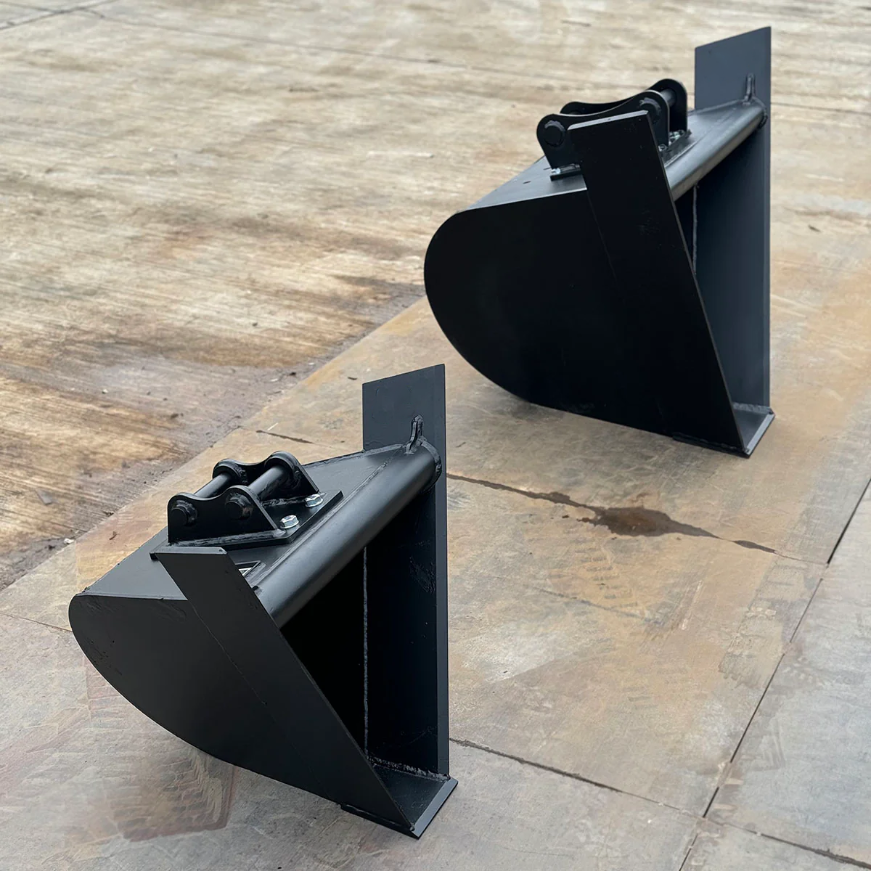

1、V Ditching Buckets are a made with an angular design enabling the operator to dig and create ditches or shallow trenches for drainage or pipework.
2、This bucket can often be supplied from pre-fabricated stock to minimise the delivery and lead time.
3、Bolt on Headstock - Pins will be bolted onto the top . This is handy if you're considering changing excavator in the future or using between multiple excavators
ditching bucket
ditching bucket
ditching bucket
V-DITCHERS technical parameters
Model Carrier Weight (Tonnes) Bottom Width (mm) Very Top Width (mm) Total Height (mm) (Measured Vertically) Cutting Edge Operating Weight (kg) OR-VT1 1-2 165 750 645 Hardox350、400/NM350、400 75 OR-VT2 2-3 200 900 767 Hardox350、400/NM350、400 110 OR-VT3 3-4 250 1000 830 Hardox350、400/NM350、400 145 OR-VT4 4-6 295 1125 920 Hardox350、400/NM350、400 190 OR-VT5 6-10 315 1450 1168 Hardox350、400/NM350、400 295 OR-VT6 10-16 375 1525 1295 Hardox350、400/NM350、400 455 Detailed Description of Product Details
Application scenarios

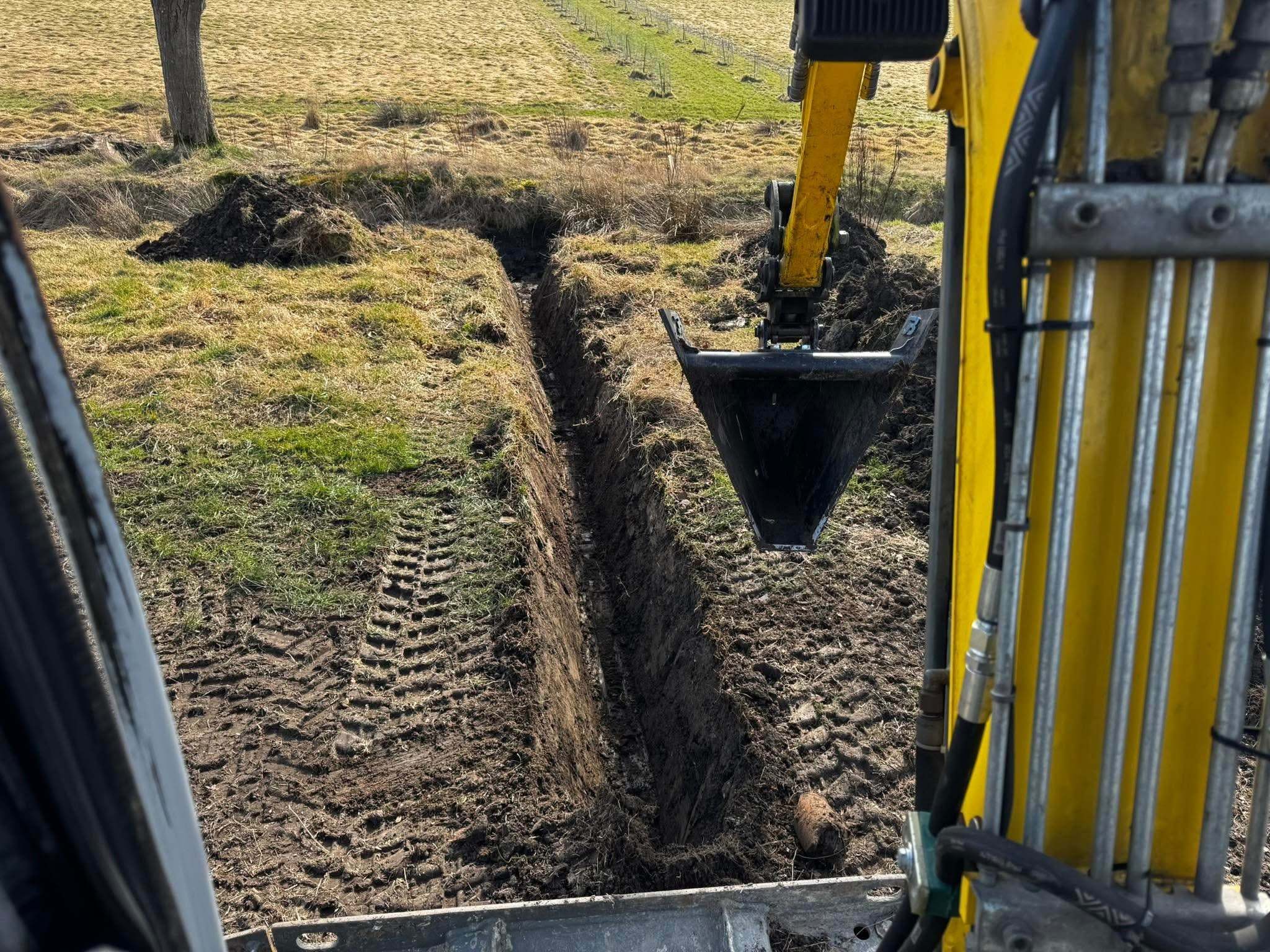

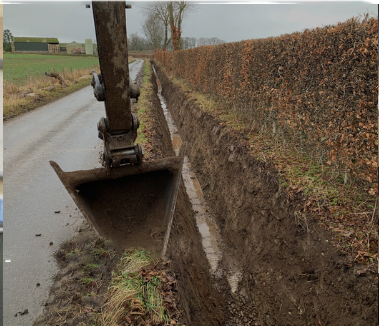

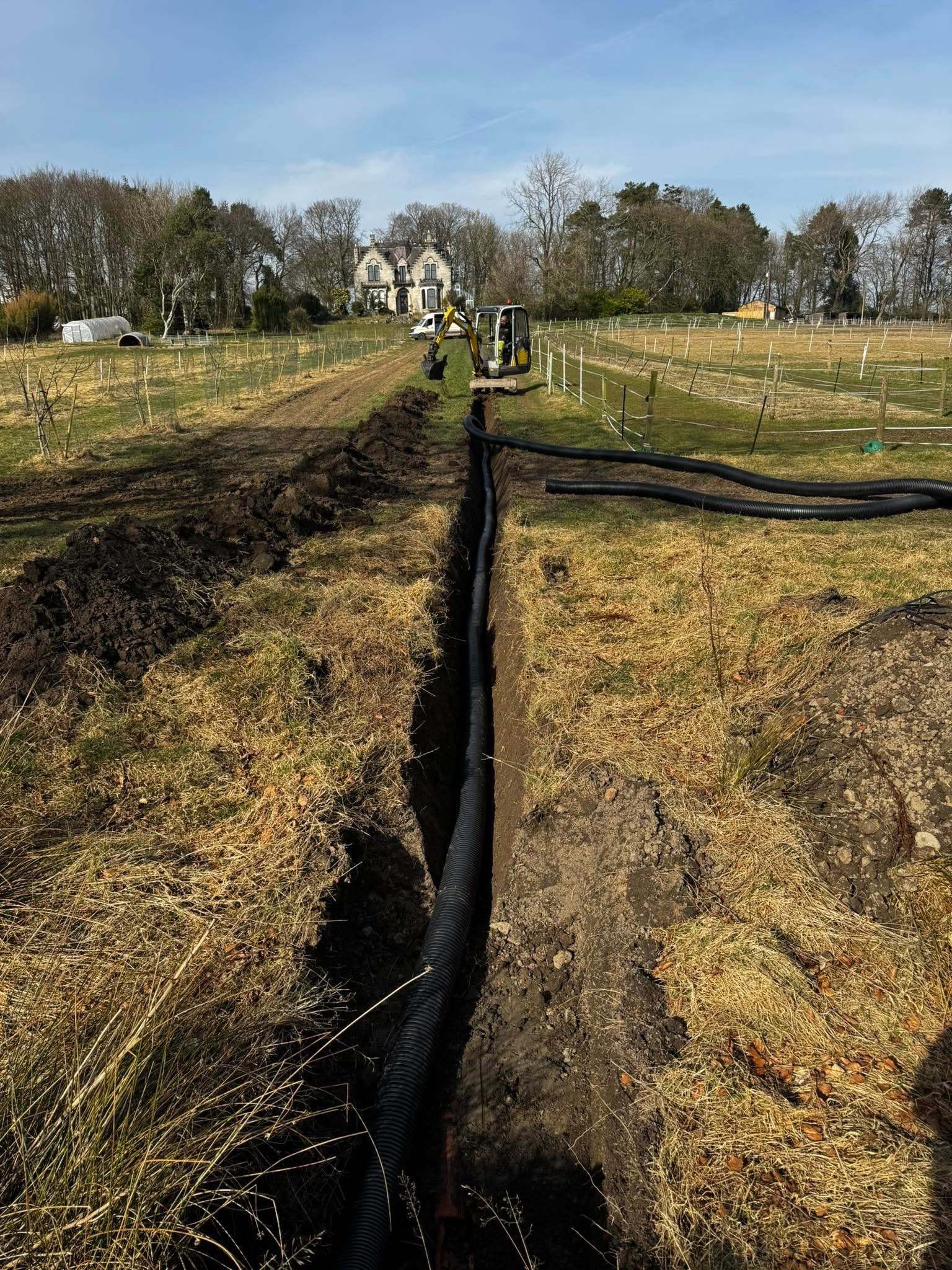

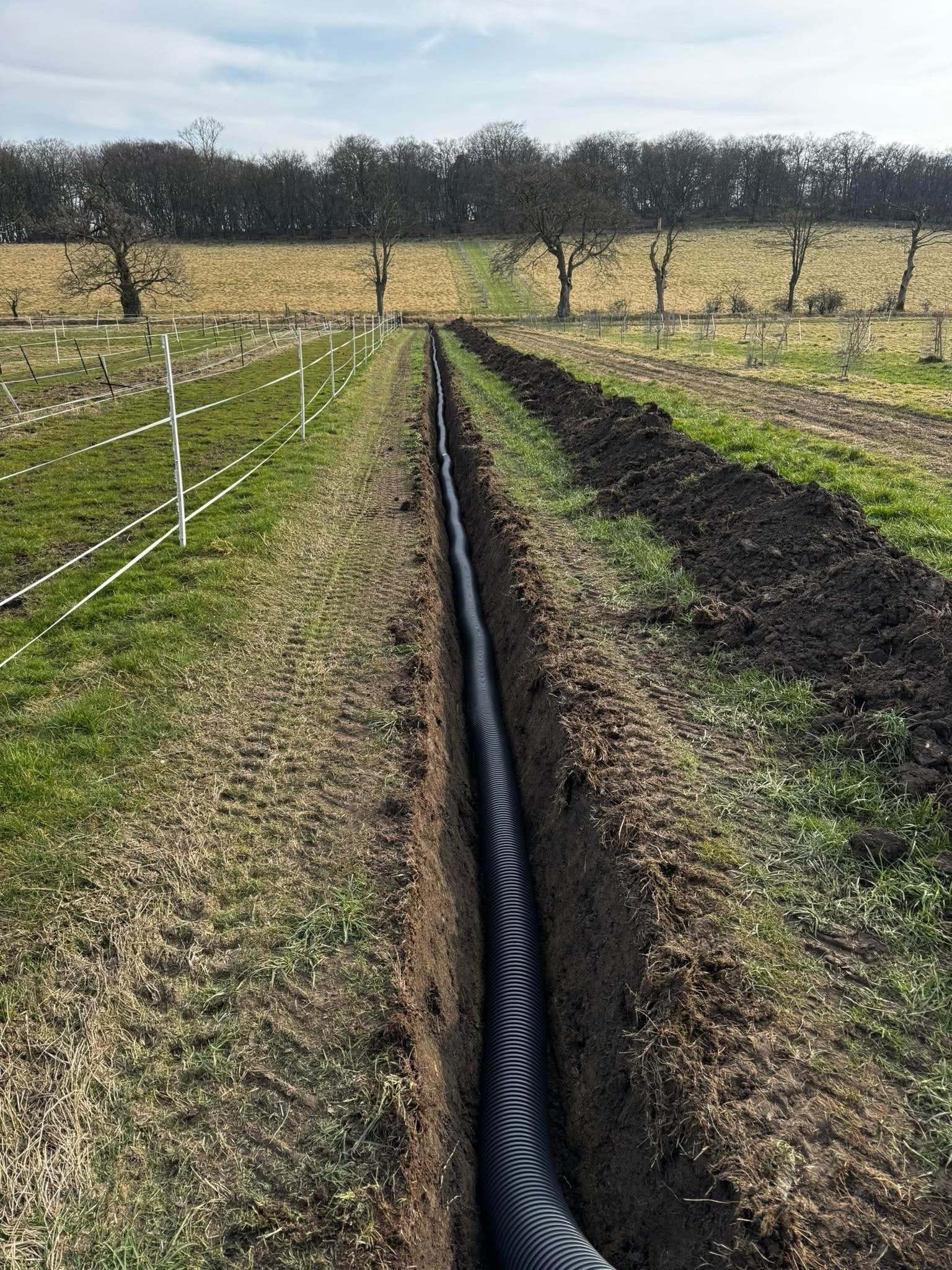

Ditching buckets are applied to underground pipeline laying, drainage ditch excavation, farmland irrigation ditch excavation, field drainage system construction, curb foundation excavation, and side ditch excavation on both sides of roads.
