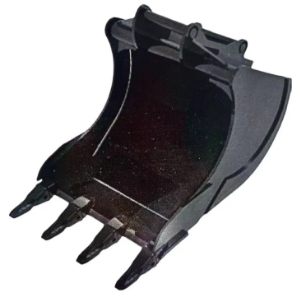

Excavator Digging Buckets (Suitable For The Steelwrists /Lehnhoff System)
Excavator Digging Buckets are applied in construction, mining, road engineering, etc.
Download
Category:
Key Word:
Excavator Bucket
excavator bucket
- Product Description
- 多图切换右边
-
Product technical parameters
Matching Tonnage Class
Width(mm)
weight(kg)
connector
Material Under 1.5 t
200-400
23-29.5
Provide customized services according to customer requirements(Suitable For The Steelwrists /Lehnhoff System)
1、The primary material of our bucket is Q355B low-alloy high-tensile structural steel.
2、The axle pin is made of 40Cr low-alloy structural steel.
3、Wear-resistant materials for local applications: NM400/NM450/NM500/Hardox400/Hardox450/Hardox500
4、The bucket teeth are made of wear-resistant cast steel.
5、This sentence states the paint system uses two primers and two topcoats, with a total film thickness of 60-80 microns.
6、The salt spray resistance test duration reaches 500 hours.1-2t
250-400
28.58-42
2-3t
300-600
40.76-69.2
3-5t
350-600
56.76-83
5-6t
400-700
65.70-146
6-10t
450-800
133-205
We can provide customized services for excavator buckets with a tonnage range of 10 to 25 tons

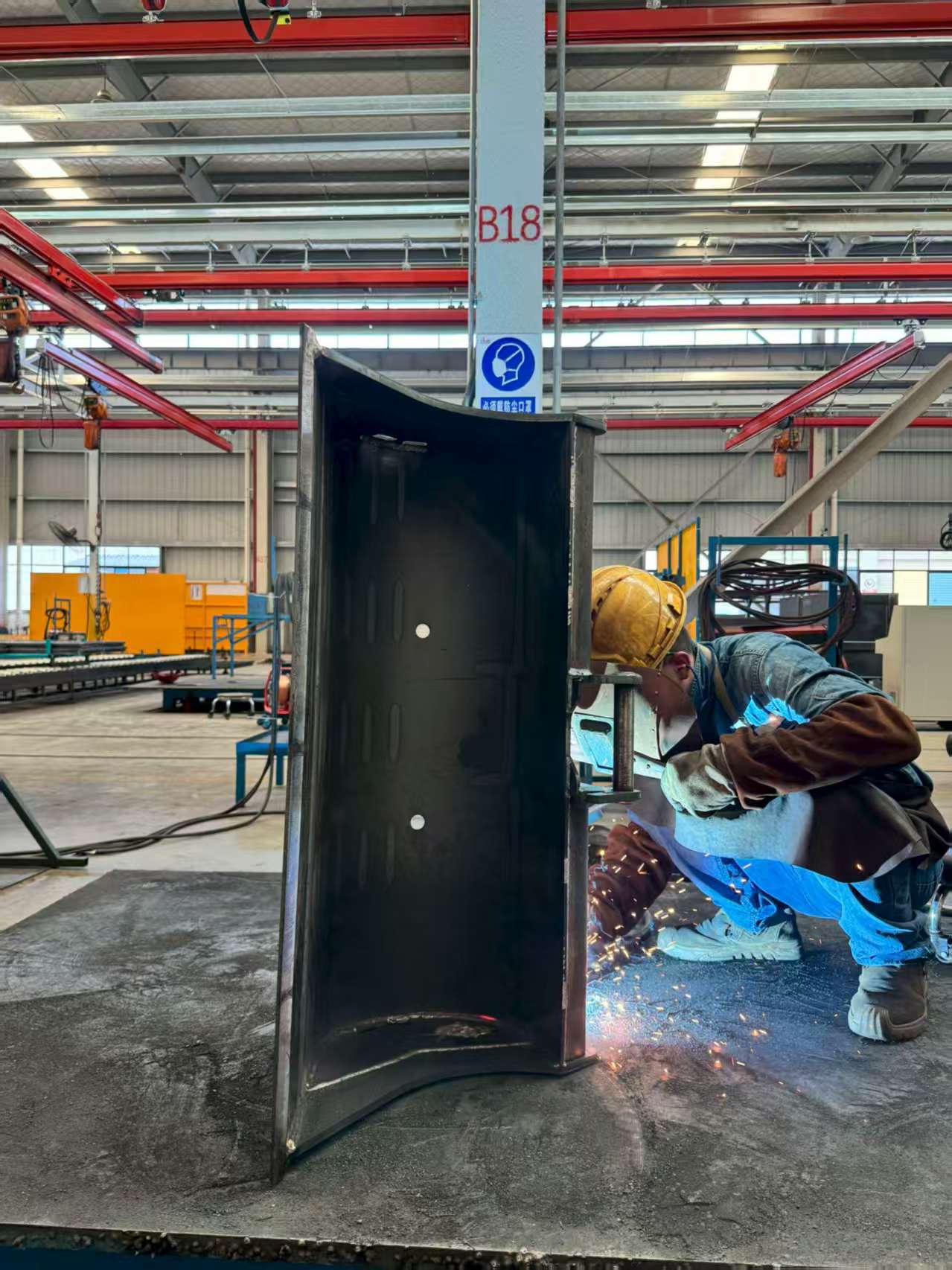

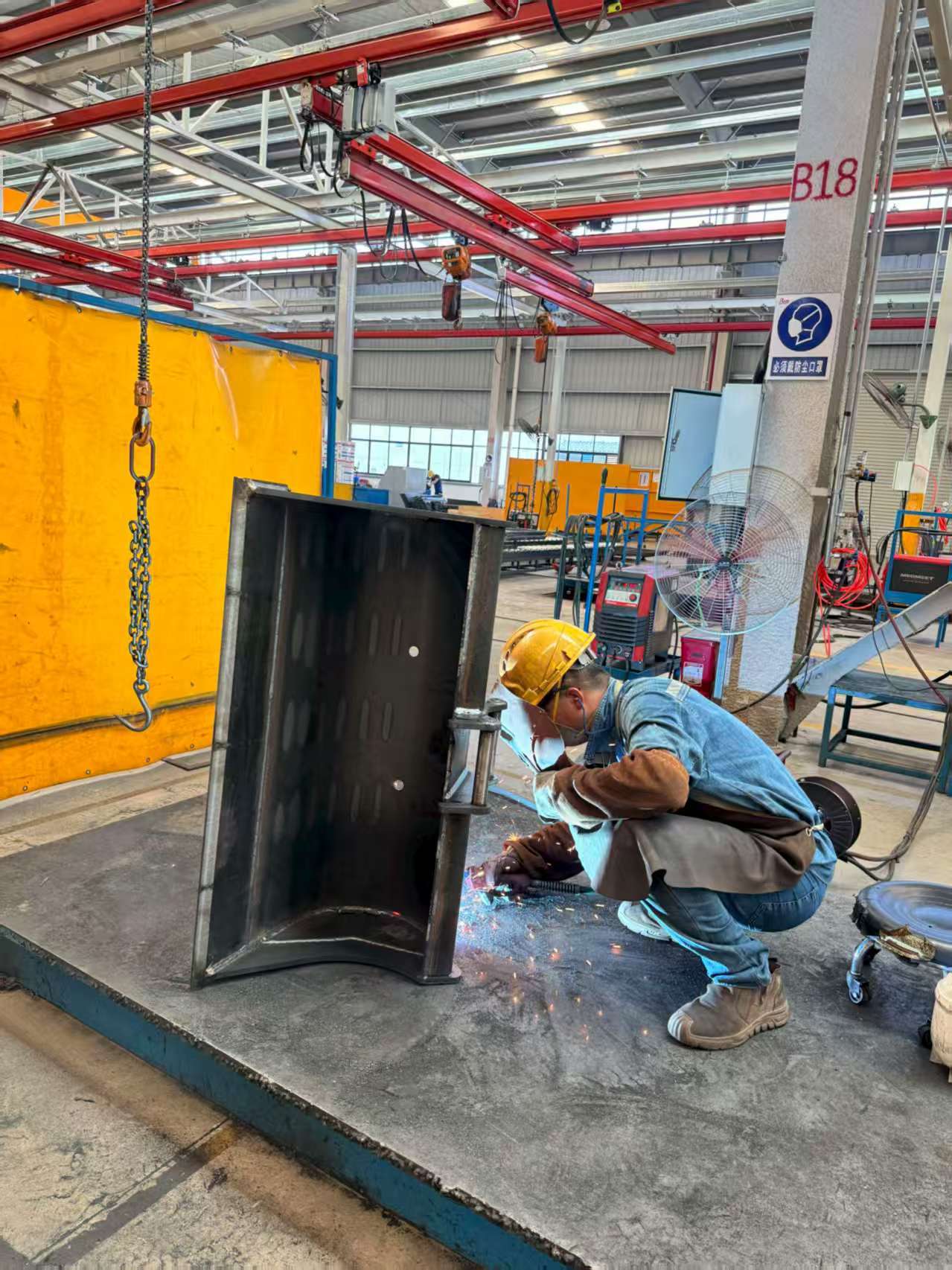

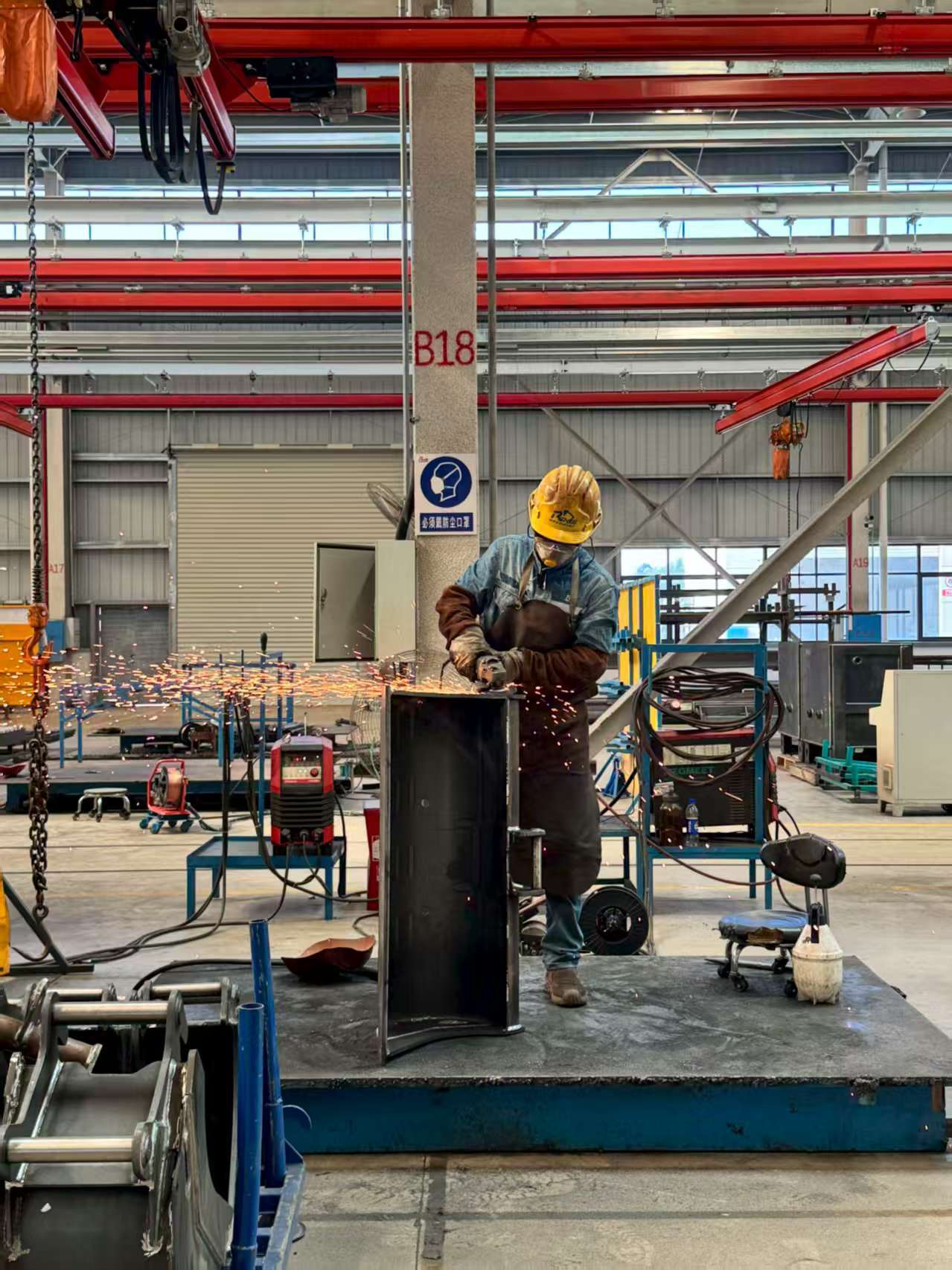

Display of workshop operations
QualitySince we adopt an in-house production model, we can ensure that both the raw materials used in our products and their manufacturing quality are guaranteed.

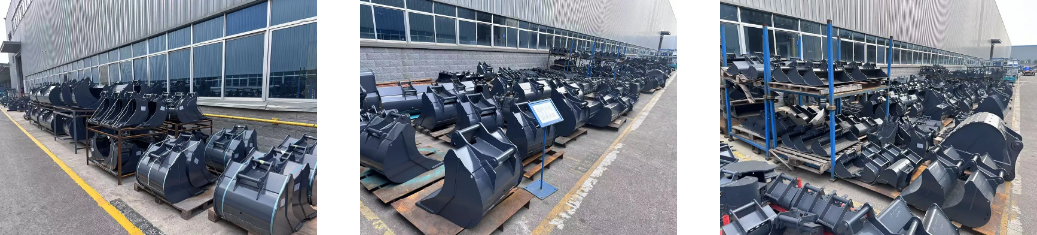

CustomWe have a large stock of buckets and sub-assemblies, and we can also undertake the production of custom products.
Packaging and Transportation

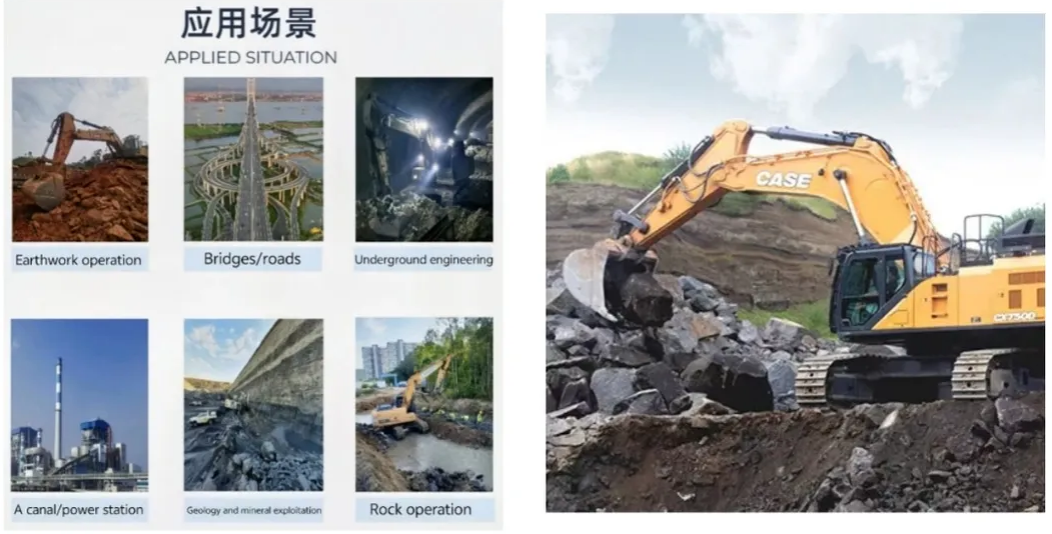

Applicable Fields
