ORSL1412DC
ORSL1412DC
Model
14m
Working height
Electric
Drive type
Share to

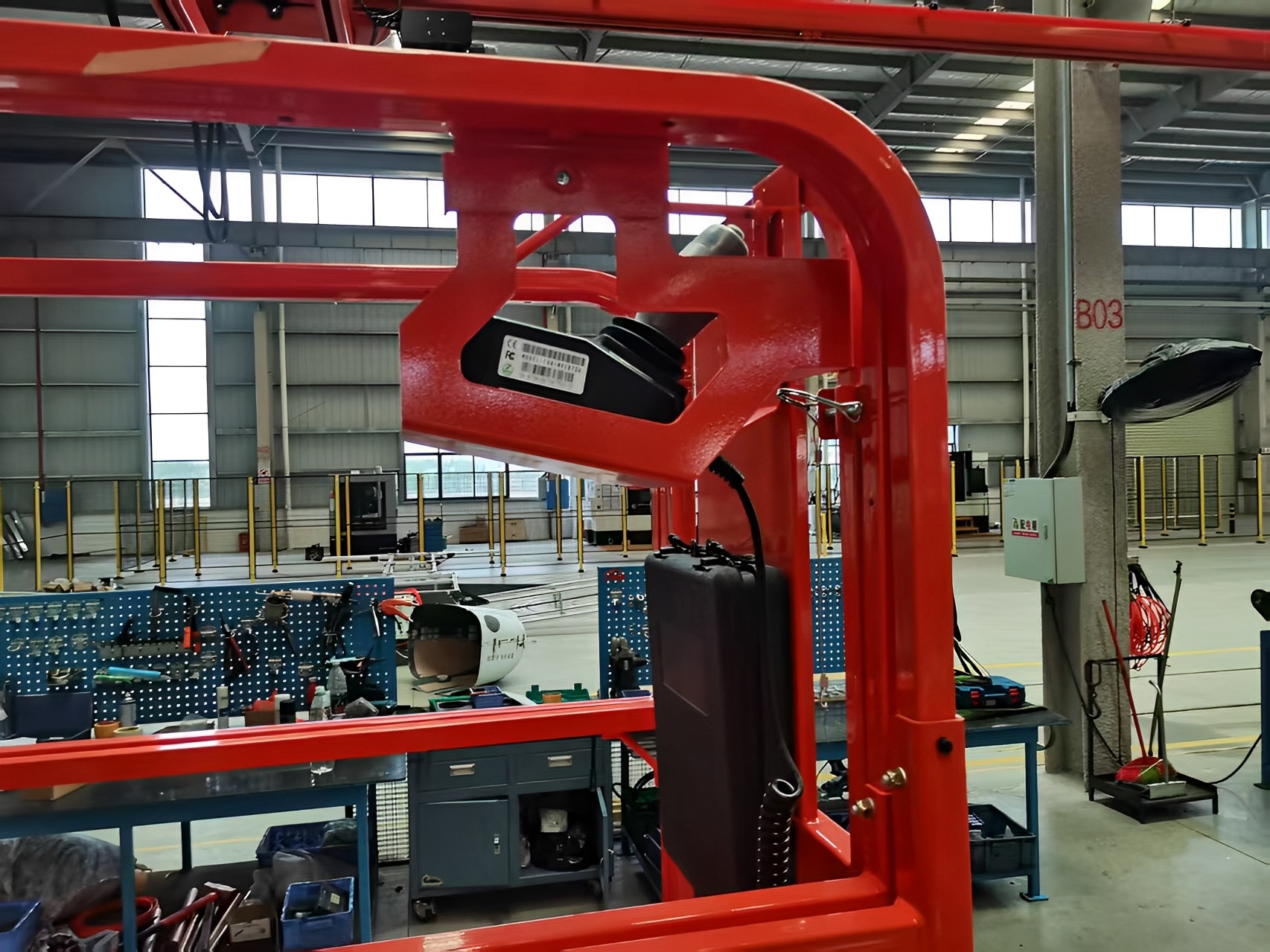

1,Proportional control handle enables speed - controlled lifting and traveling at any desired rate.
2,Travel and steer at full height, facilitating operation and improving efficiency

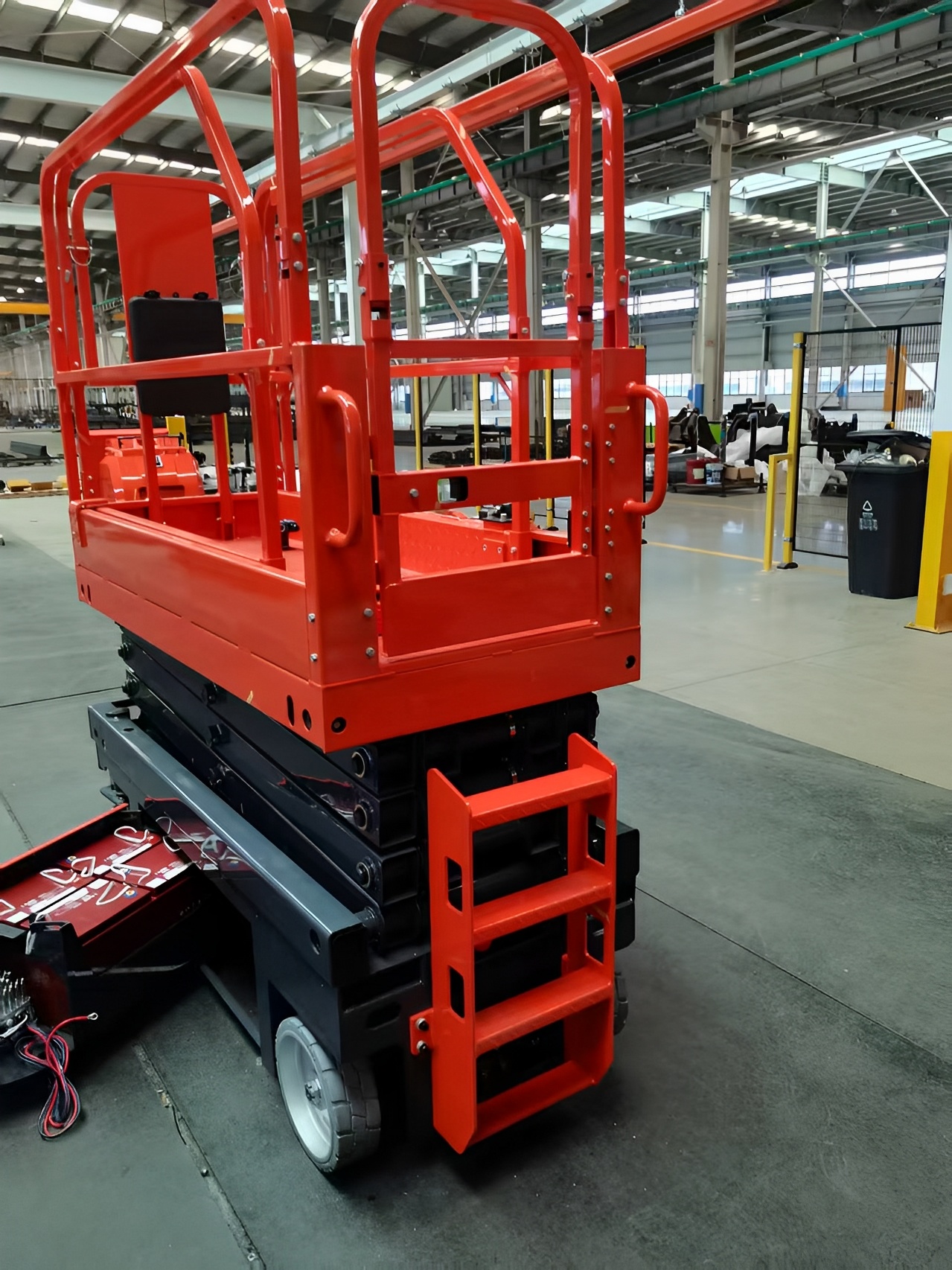

3,One-way extended platform increases the operation radius and improves the ability to cross obstacles.

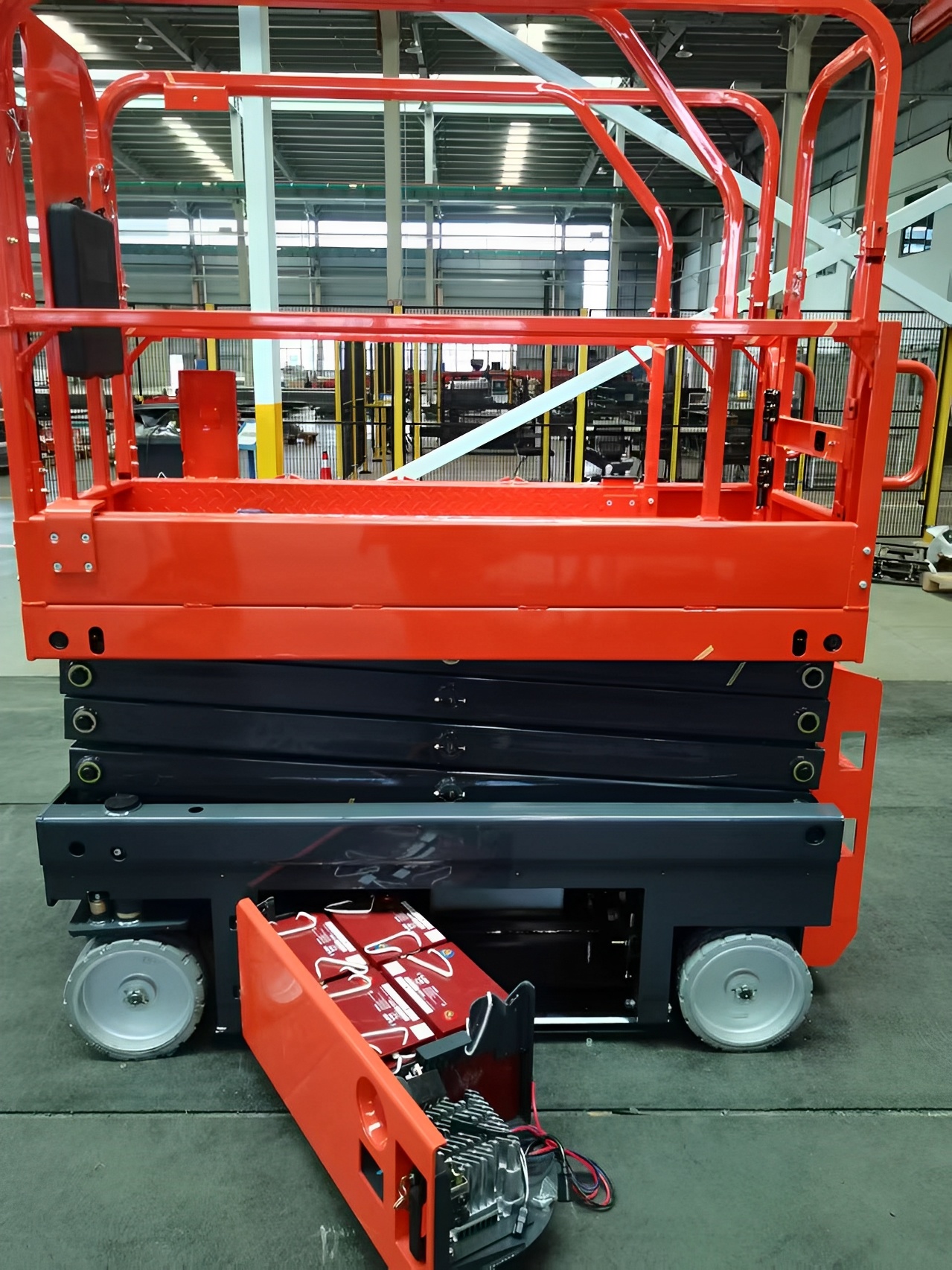

4,The box bodies on both sides of the chassis can be swiveled out, which is convenient for inspection.
- Product Description
- 多图切换右边
-
Product Description

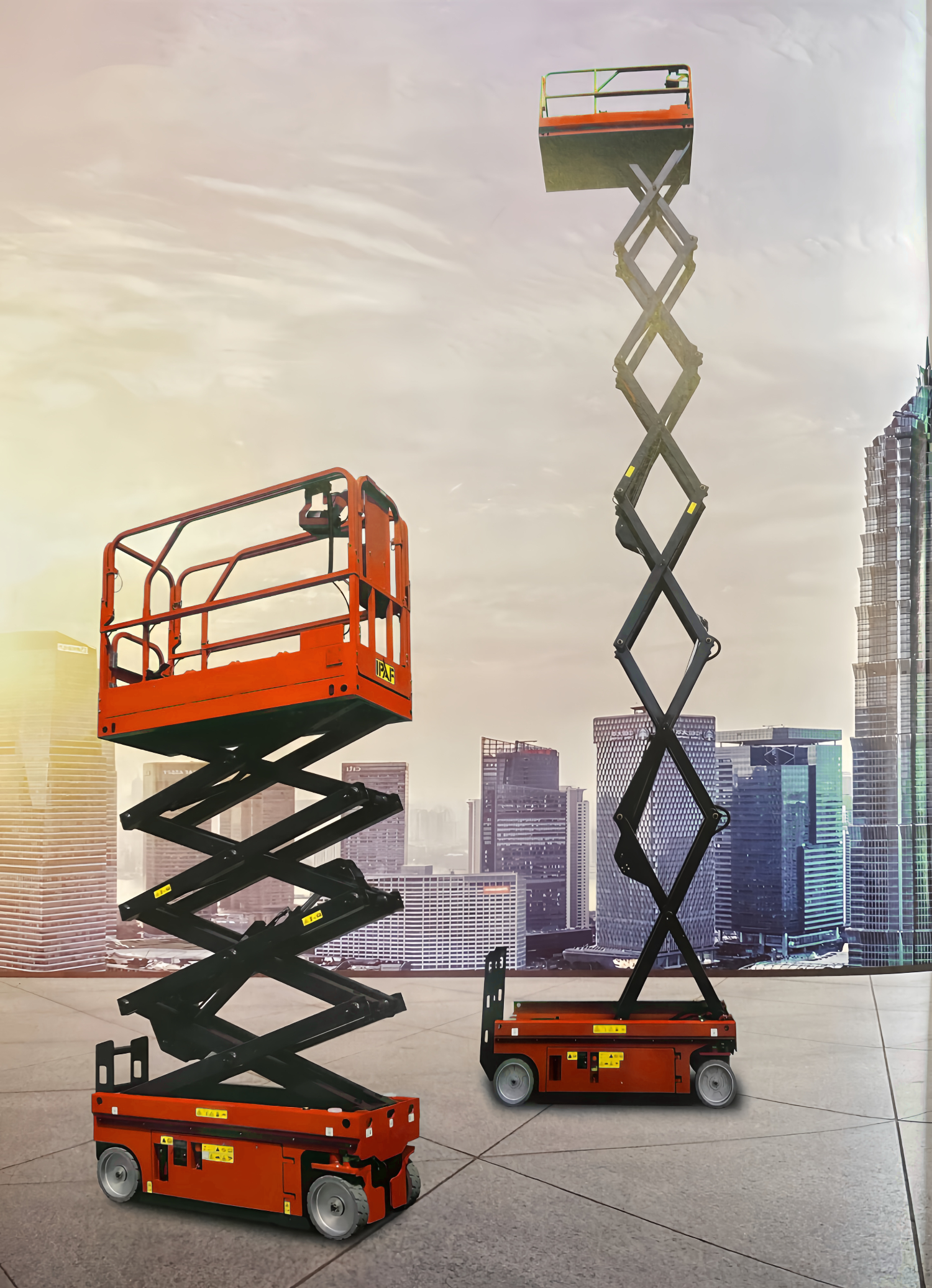

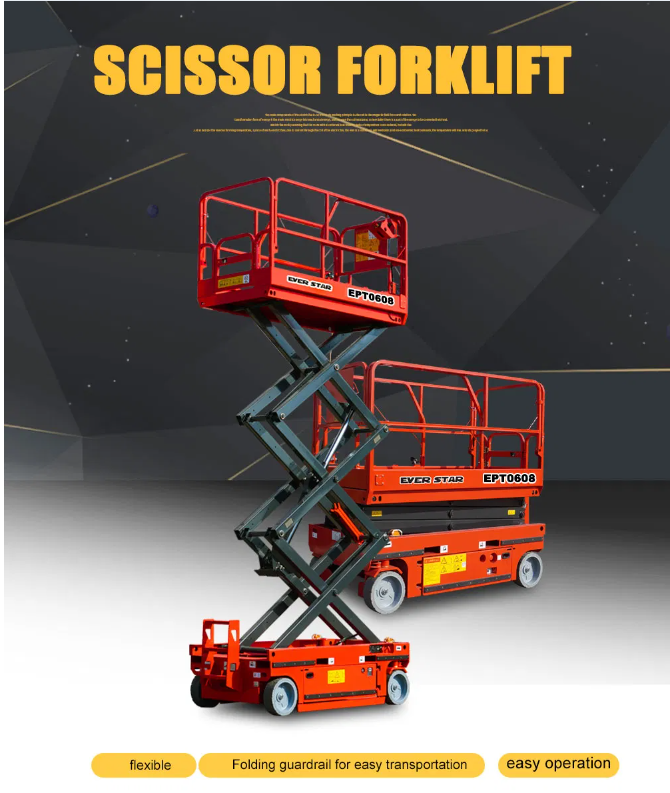

Electric scissor - type aerial work platform
1,Proportional control handle enables speed - controlled lifting and traveling at any desired rate.
2,Travel and steer at full height, facilitating operation and improving efficiency
3,One-way extended platform increases the operation radius and improves the ability to cross obstacles.
4,The box bodies on both sides of the chassis can be swiveled out, which is convenient for inspection.

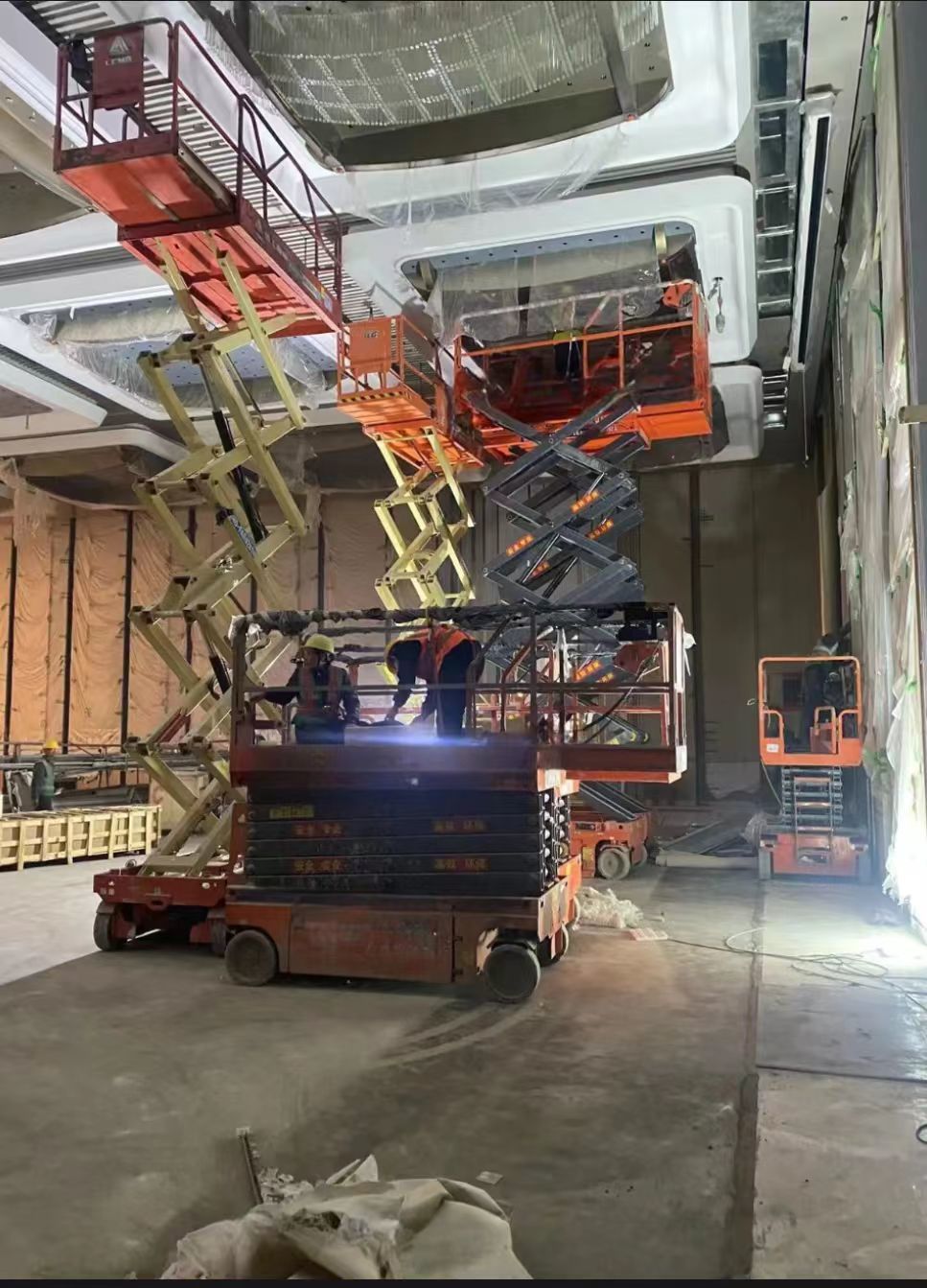

Application scenarios

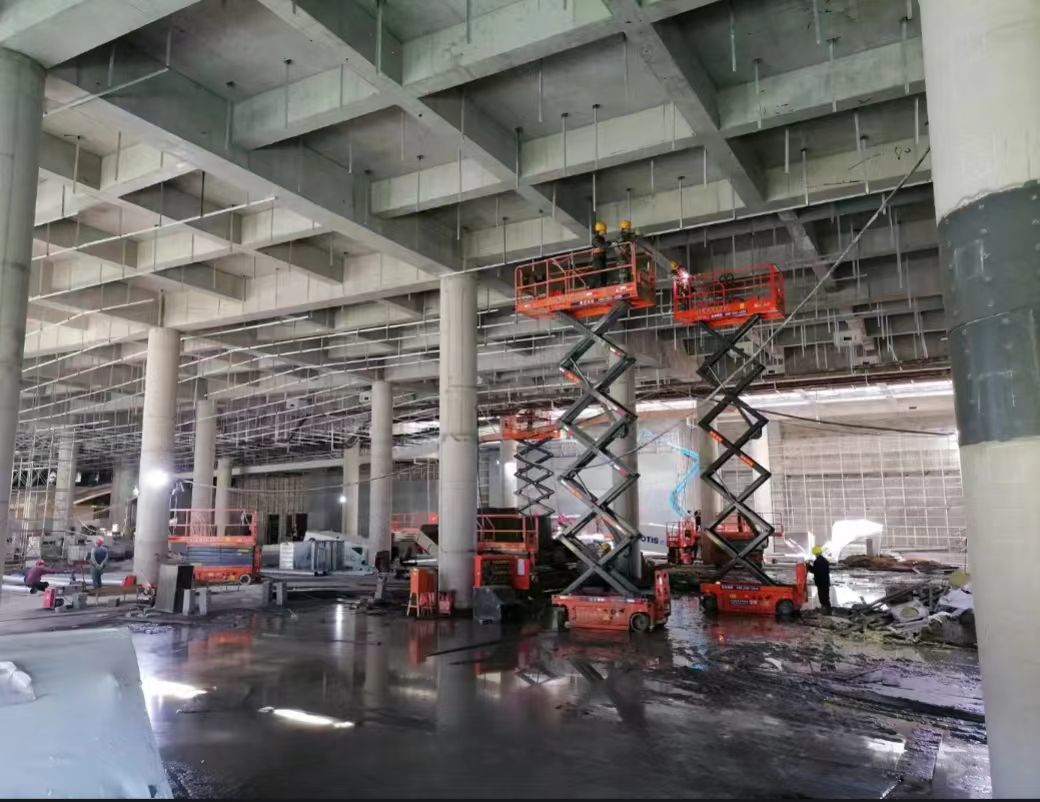

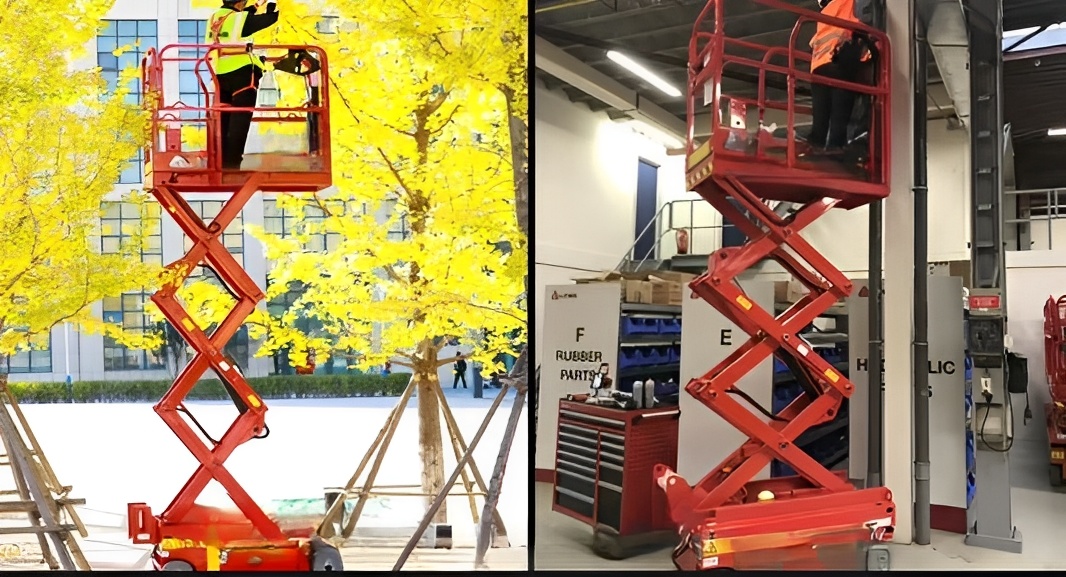

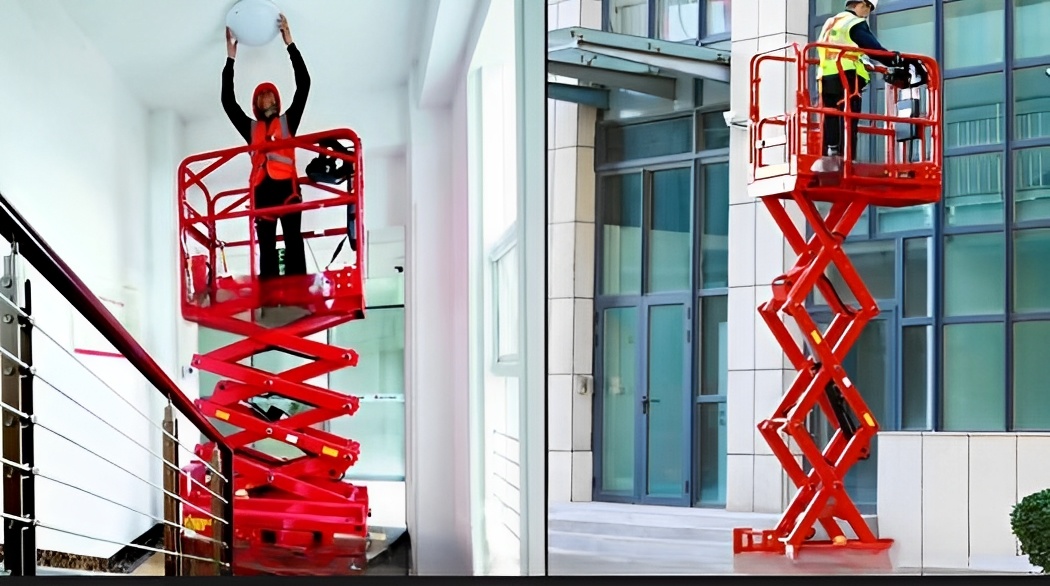

Electric - driven scissor - type aerial work platforms have a wide range of application scenarios, including construction sites, industrial plants, commercial premises, logistics and warehousing facilities, transportation hubs, etc
Technical parameters
Size/Model ORSL0607DC ORSL0807DC ORSL1008DC ORSL1212DC ORSL1412DC Maximum working height 6.5m 8m 10m 12m 14m Maximum platform height
4.5m 6m 8m 10m 12m Storage platform height 0.95m 1.05m 1.26m 1.36m 1.49m Length of the working platform 1.29m 1.7m 2.27m 2.27m 2.27m Extension dimension of the platform 0.6m 0.9m 0.9m 0.9m 0.9m Width of the working platform 0.76m 0.74m 0.81m 1.15m 1.15m Height - Storage (Guardrail Raised) 2.06m 2.17m 2.36m 2.49m 2.63m Height - Storage (Guardrail Folded) 1.7m 1.79m 1.86m 1.95m 2.09m Overall length of the whole machine 1.44m 1.86m 2.46m 2.47m 2.47m Overall width of the whole machine
0.76m 0.76m 0.83m 1.17m 1.17m Wheelbase 1.05m 1.38m 1.87m 1.87m 1.87m Ground clearance (in stowed state/condition) 0.06m 0.083m 0.11m 0.11m 0.11m Ground clearance (in the raised state)
0.017m 0.02m 0.02m 0.02m 0.02m Rated load 240kg 230kg 230kg 320kg 320kg Safe working load of the extended platform
100kg 113kg 113kg 113kg 113kg Maximum number of people at work
2 2 2 2 2 Driving speed (in stowed state) 3.6km/h 3.0km/h 3.2km/h 3.2km/h 3.2km/h Driving speed (in the raised state)
0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h Turning radius (inner side) 0.4m 0m 0m 0m 0m Turning radius (outer side)
1.6m 1.67m 2.1m 2.2m 2.2m Raising/Lowering speed 20s/22s 20s/27s 32s/40s 55s/38s 62s/42s Maximum climbing capacity
0.3 0.25 0.25 0.25 0.25 Maximum allowable working angle 1.5°/3° 1.5°/3° 1.5°/3° 1.5°/3° 1.5°/3° Tires - Solid and Non-marking (Outer Diameter x Width)
230mmx80mm 323mmx100mm 381mmx127mm 381mmx127mm 381mmx127mm Control Proportionalcontrol Proportional control Proportional control Proportional control Proportional control Drive DC motor rear drive DC motor front drive DC motor front drive DC motor front drive DC motor front drive Multi-disc brake Dual rear wheels Dual front wheels Dual front wheels Dual front wheels Dual front wheels storage battery 2x12V/85Ah 4x6V/210Ah 4x6V/225Ah 4x6V/240Ah 4x12V/300Ah charging apparatus 24V/15A 24V/30A 24V/30A 24V/30A 24V/30A Weight 900kg 1545kg 2100kg 2950kg 3000kg -
1,Proportional control handle enables speed - controlled lifting and traveling at any desired rate.
2,Travel and steer at full height, facilitating operation and improving efficiency
3,One-way extended platform increases the operation radius and improves the ability to cross obstacles.
4,The box bodies on both sides of the chassis can be swiveled out, which is convenient for inspection.
