Excavator Thumb Grab Bucket Package
Category:
Key Word:
Excavator Bucket
Excavator Bucket
- Product Description
- 多图切换右边
-
Applicable Fields

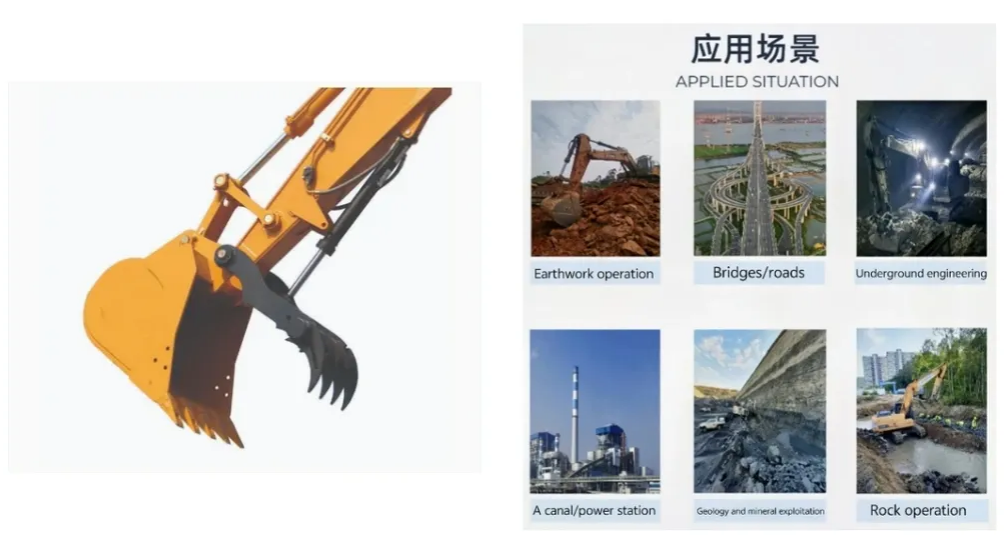

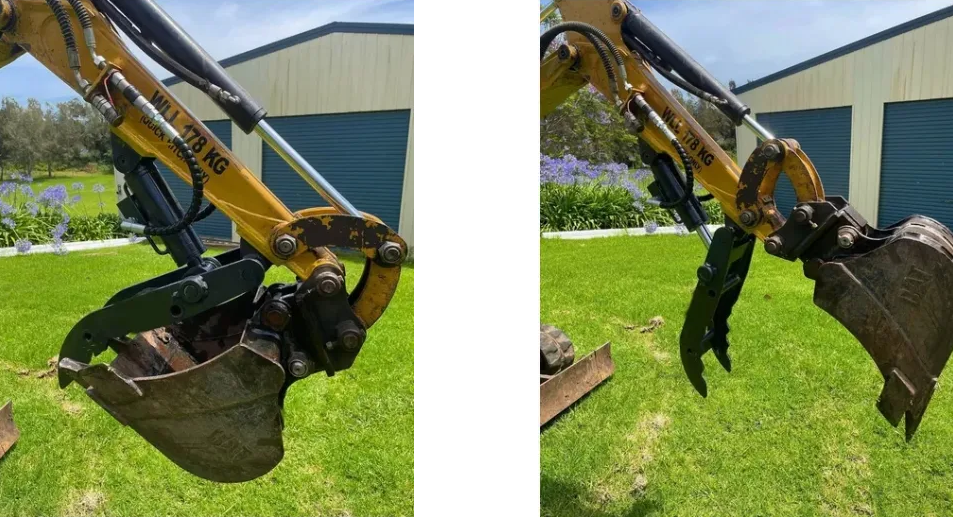

Also known as a digging bucket clamp, the Excavator Thumb Clamp is an ingenious blend of a hydraulic grapple and a bucket. With a remarkable large opening width and a lightweight design, it not only adeptly handles various materials but also significantly enhances operational efficiency to new heights.
Core Features
1. Effortlessly grasp materials in any orientation, showcasing exceptional efficiency in material sorting and classification tasks.
2. Features a meticulously crafted structural design that ensures robust bearing capacity.
3. User-friendly and versatile, serving as a multi-functional powerhouse.
Product Model

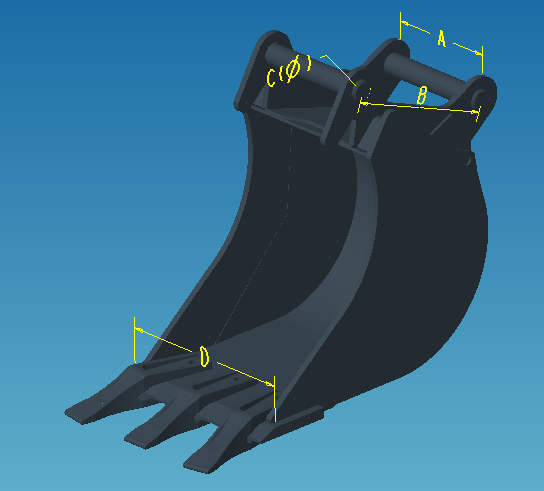

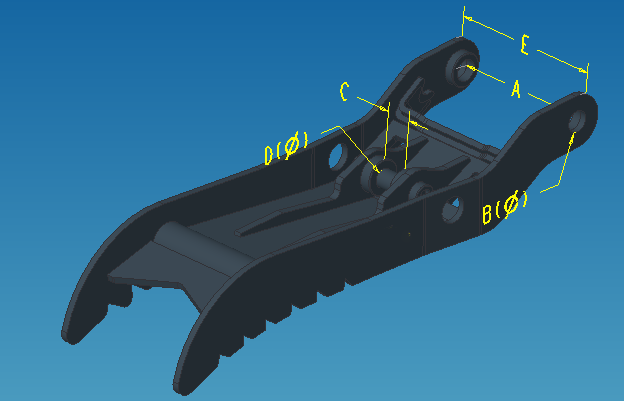

model OR-TB-166 OR-TB-193 OR-TB-271 OR-TB-335 OR-TB-405 OR-TB-483 suitable-quick coupler S30-150 S40-200 S40-200 S50-270 S60-340 S70-450 Thumbtack(Ainstallation width-mm) 166 193 271 335 405 483 Thumbtack (B axis diameter - mm) 30 35 45 55 65 80 Thumbtack(C installation width - mm) 42 47 52 52 63 63 Thumbtack(D installation width-mm) 25 30 40 40 50 50 Thumbtack(E total width - mm) 216 273 318 322 533 629 oil pressure - Mpa 3-20Mpa 3-20Mpa 3-20Mpa 3-20Mpa 3-20Mpa 3-20Mpa totat weight-kg 21 37 72 97 175 294 excavator bucket A installation width-mm 155 205 205 271 344 455 excavator bucket axis distance-mm 201 300.5 300.5 430 480 601 excavator bucket C axis diameter-mm 30 40 40 50 65 71 excavator bucket Bucket width-mm 400 520 680 700 800 1280 excavator bucket Bucket volume-m³ 0.02 0.065 0.16 0.19 0.6 2 excavator bucket total weight-kg 42 81 146 206 436.9 687.7 suitable excavator-ton 1-2 2-4 4-6 6-9 9-16 16-22
Applicable Fields
