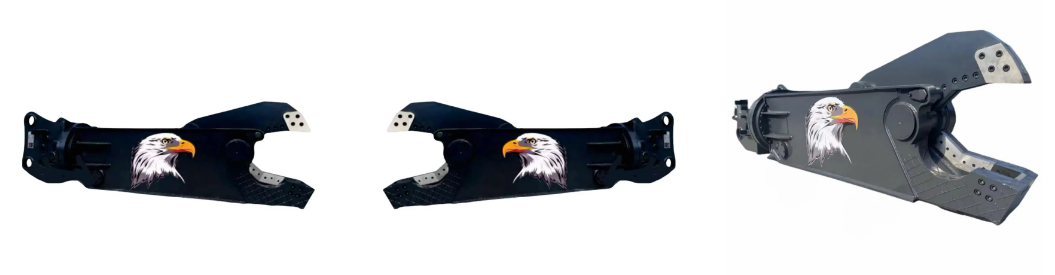

Excavator Eagle Beak Shears
Category:
Key Word:
- Product Description
- 多图切换右边
-
Applicable Fields

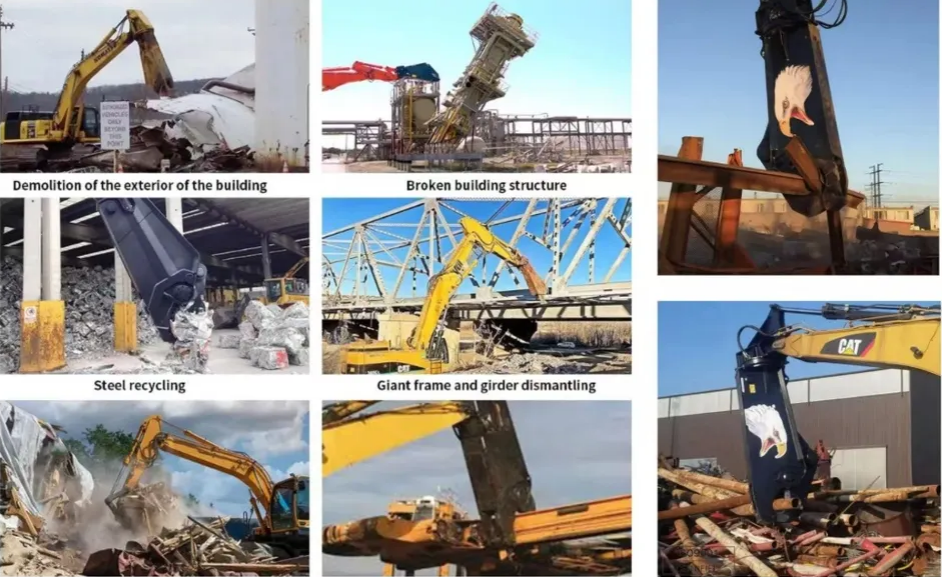

Primarily used for precision cutting of H-beams, I-beams, automotive structural components, and industrial support frameworks in heavy machinery dismantling and recycling applications.
Product Features
1.Advanced Rotary System: Equipped with specialized slewing bearings and high-torque hydraulic motors, ensuring smooth operation, exceptional stability, and efficient power transmission.
2.Heavy-Duty Construction: The shear body is fabricated from TDNM 450 high-strength wear-resistant steel plate, delivering superior toughness and impact resistance under extreme loads.
3.Premium Cutting Edges: Utilizes imported alloy steel blades with optimized heat treatment, providing extended service life and consistent cutting performance.

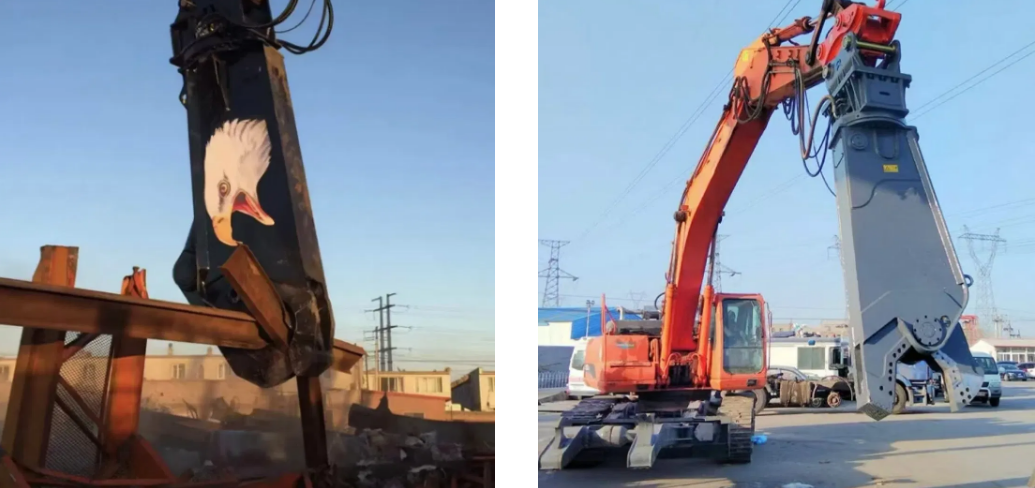

4.Versatile Dismantling Solution: Ideal for heavy-duty vehicle recycling and industrial demolition projects, combining agility with robust durability for challenging environments.
Product Model
ltem/Model
Unit
TD260
TD360
TD460
TD560
Weight
kg
2250
3000
4350
6000
Opening
mm
460
600
780
1000
Cutting Deepth
mm
530
650
750
850
Height
mm
3100
3500
4300
5200
Width A/B
mm
950/700
1200/700
1350/810
1700/1850
Driving Pressure
kg/cm²
280-320
280-320
280-320
320-350
Cyele Tine
sec
7-15S
9S
15S
15-20S
Cutting Force F1/F2/F3
ton
80/100/130
100/120/150
120/150/190
150/190/260
Suitable Excavator
ton
20-28
28-40
30-49
45-60
Applicable Fields
