Excavator Auger
Category:
Key Word:
- Product Description
- 多图切换右边
-

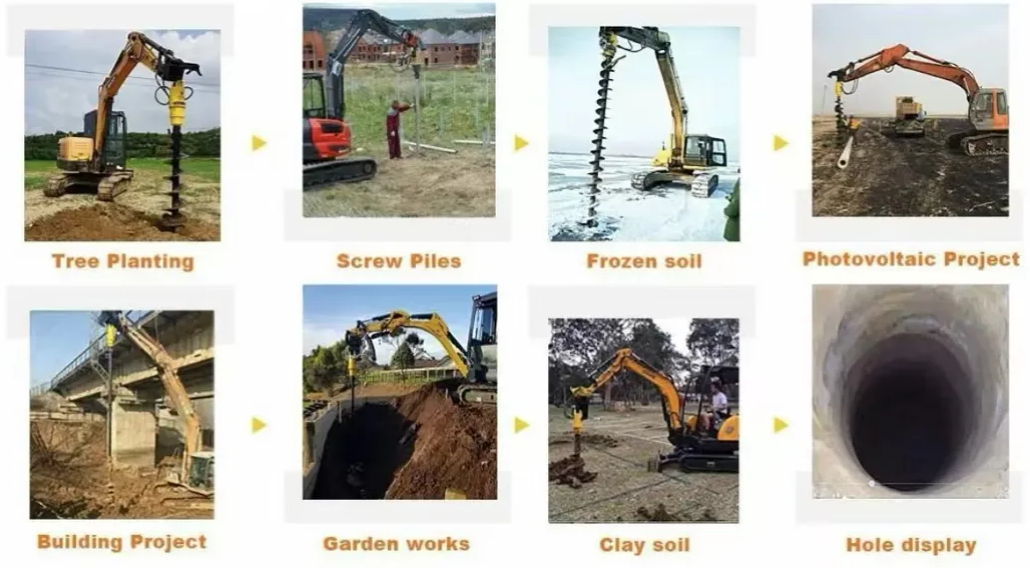

Applicable Fields
Ideal for rapid and efficient drilling operations tailored for infrastructure construction.
Outstanding Product Features
1. Crafted from high-grade Q345 manganese plate steel, ensuring exceptional strength and superior corrosion resistance.
2. Equipped with drilling teeth made from manganese molybdenum alloy, promising remarkable durability and longevity.
3. Incorporates imported Eaton hydraulic motors from the United States, delivering high torque and unparalleled durability.
4. Featuring Japanese-designed process reducers, guaranteeing smooth, flexible, and highly convenient operation.
Product model
ltem/Model
Unit
TD2000
TD4000
TD6000
TD8000
TD10000
TD12000
TD15000
TD2000
Torque
N.m
2090
4120
6050
8100
11000
12500
15300
20800
Pressure
Bar
205
240
240
240
240
240
240
250
Oil flow range
Lpm
30-61
30-68
38-76
61-121
61-136
80-140
80-170
90-180
Rotary speed
Rpm
40-82
32-72
29-58
37-72
29-64
22-43
17-34
16-30
Hydraulic hose
Inch
½
½
½
½
½
¾
¾
1
Output shaft
Mm
75
75
75
75
75
75
75
75
Unit weight
Kg
54
71
108
112
115
167
220
250
Unit height
Mm
750
750
750
850
980
980
980
980
Unit max.dia.
Mm
220
220
220
280
300
300
350
350
Auger length
m
1-2
1-3
1-5
1-6
1-9
1-10
1-14
1-20
Auger dia. Range
Mm
100-500
100-750
150-600
150-900
150-900
150-900
150-1200
150-1200
Carrier
Ton
1.5-3
2.5-4.5
4.5-7
7-10
8-13
13-17
15-20
17-25
Applicable Fields
