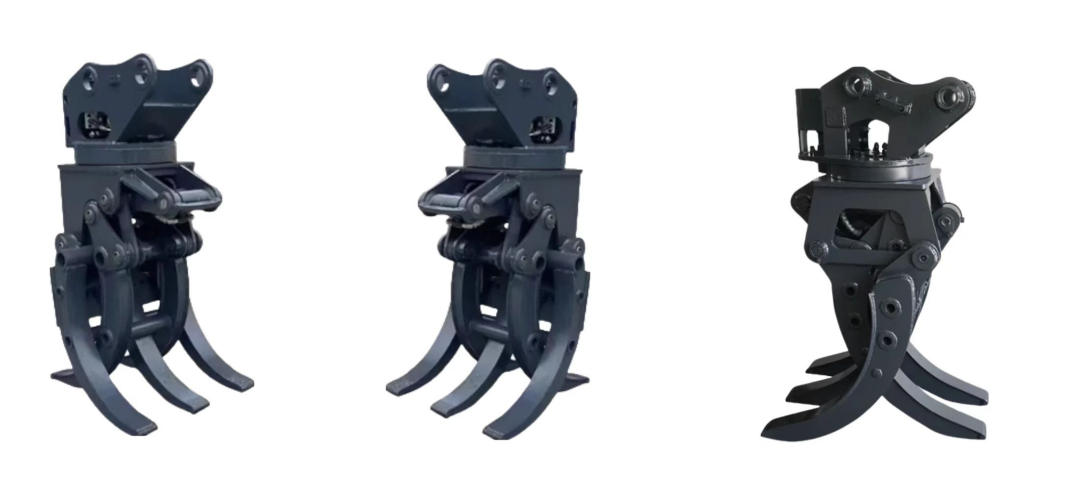

Excavator Log Grapple
Category:
Key Word:
- Product Description
- 多图切换右边
-
Applicable Fields

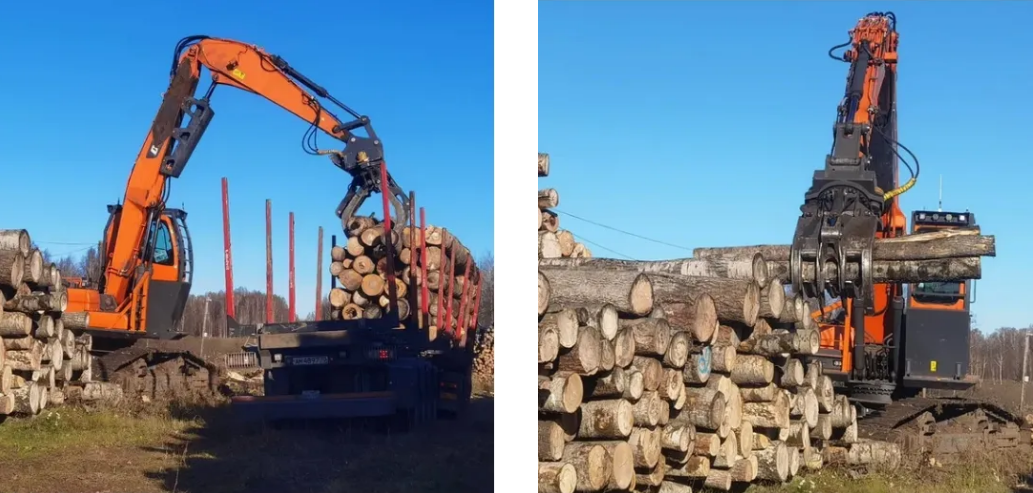

Designed for the grasping of agricultural residues such as straw, reeds, and slender timbers, as well as similar materials.
Product Features
1. Made of special steel, it is lightweight, highly elastic and wear - resistant.
2. With an ultra - wide opening width at the same level, it has a light weight and stable performance, and strong gripping force.
3. Special craftsmanship extends product life and reduces maintenance costs.
4. It can control the rotation speed and can freely rotate 360 degrees clockwise and counterclockwise.
Product Model
ltem/Model
Unit
TD-04
TD-05
TD-06
TD-08
Weight
kg
380
410
700
1100
Max jaw opening
mm
1250
1250
1700
2000
Oil pressure
bar
120-160
120-160
150-170
160-180
Set up pressure
bar
120
120
120
120
Operating flux
lpm
50-100
50-100
90-110
100-140
Cylinder Volume
litre
8.0×1
8.0×1
8.0×1
8.0×1
Suitable excavator
ton
5-10
12-18
12-18
18-30
Applicable Fields
