Mini Dumper HT500-4
HT500-4
Model
550kg
Operation Weight
200dm²
Bucket Capacity
Share to

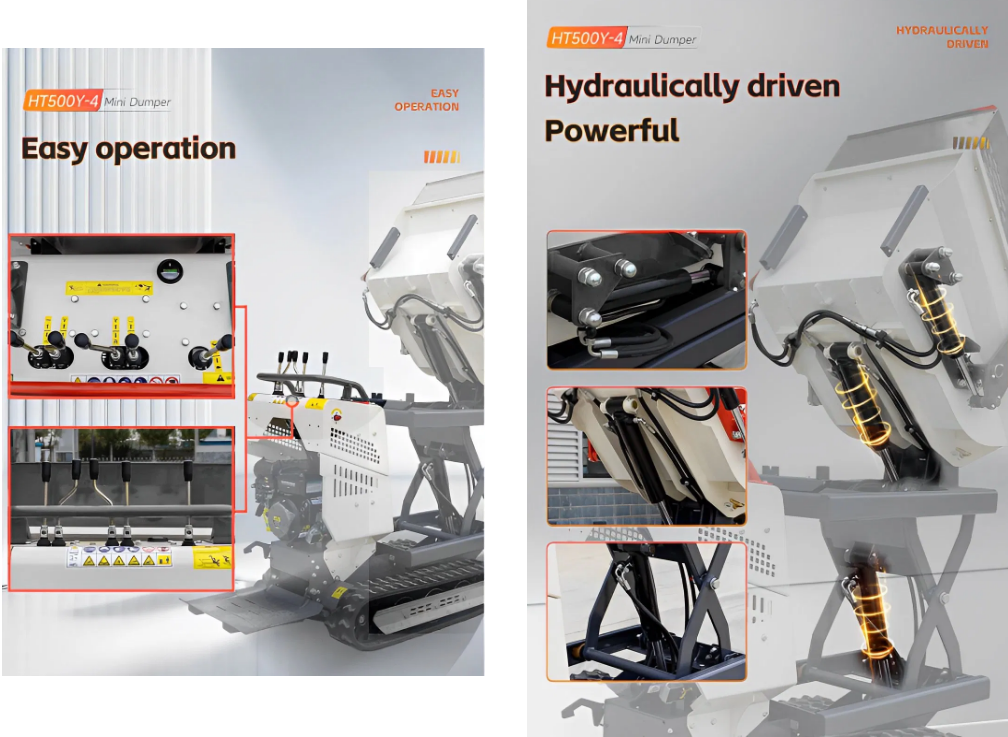

- Small dump trucks feature engine-driven, electric hydraulic systems.
- Compact size allows efficient operation even in narrow or hard-to-reach areas.
- Easy to clean, lightweight and maneuverable.
- Wide tracks reduce ground pressure, minimizing ground disturbance during work, ensuring a smoother ride and protecting both machine and operator.
- Product Description
- 多图切换右边
-
Product Description

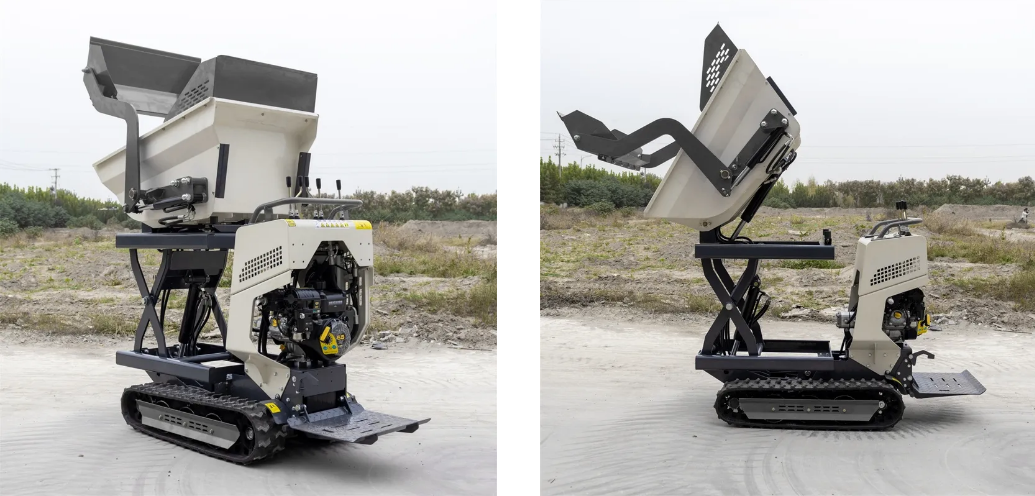

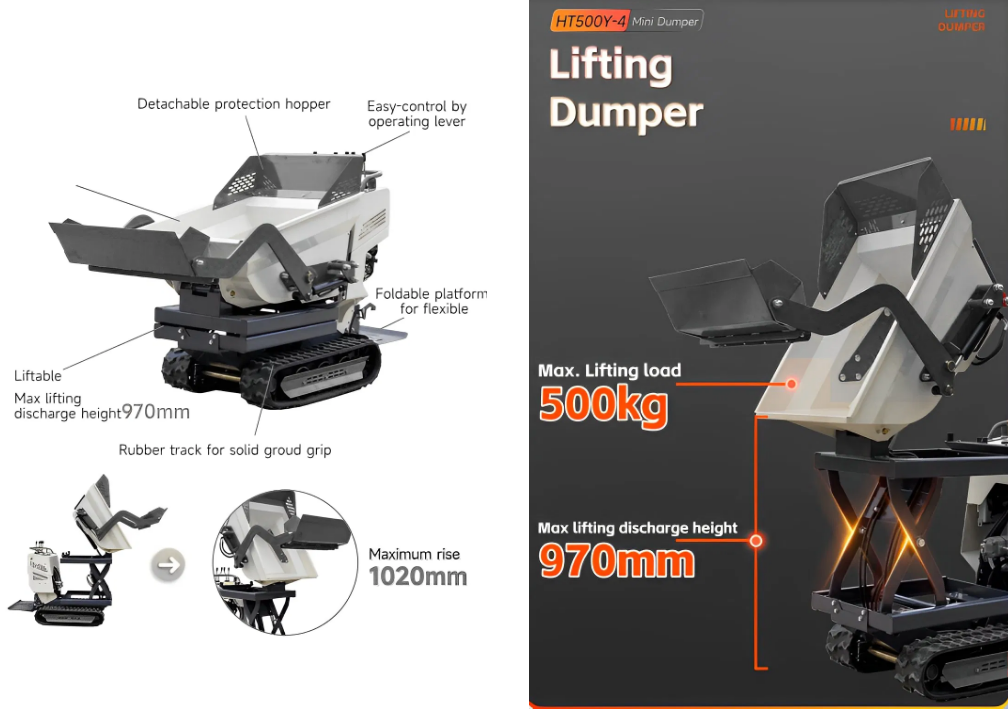

Crawler-type transport vehicle with 6.5HP, electric start and liftable function. The hopper has a lifting range of 970mm. It performs excellently under complex and harsh road conditions and is widely applied in scenarios such as agricultural and forestry transportation, orchard transportation, infrastructure construction projects, and mining sites.
Technical parameters
Product Model HT500Y-4 Engine Model Briggs&Stratton Maximum rise 1020mm Engine Type Single cylinder,OHV,4-stroke,air cooling Tipping height 970mm displacement displacement Tipping interval 220mm Rated Power 6.5HP/3600rpm track width 180mm Fuel Type 92#Gasoline Track grounding length Track grounding length Fuel Tank capacity 3.6L Chassis ground clearance 110mm TotalWeight 550kg CargoboxCapacity 200dm² Maximum load 500kg Tipping Systme Hydraulic Tipper Machin size(Without pedal,without bucket) 1570*880*1450mm Tilting Angle 100° Bucket size with foot pedal 2050*880*1450mm Walking Speed 2.88km/h Container size Container size Container size 1150mm Chassis width 700mm Track gauge 520mm Climbing abillty 20° Description of Product Structure
Application Scenarios
-
- Small dump trucks feature engine-driven, electric hydraulic systems.
- Compact size allows efficient operation even in narrow or hard-to-reach areas.
- Easy to clean, lightweight and maneuverable.
- Wide tracks reduce ground pressure, minimizing ground disturbance during work, ensuring a smoother ride and protecting both machine and operator.
