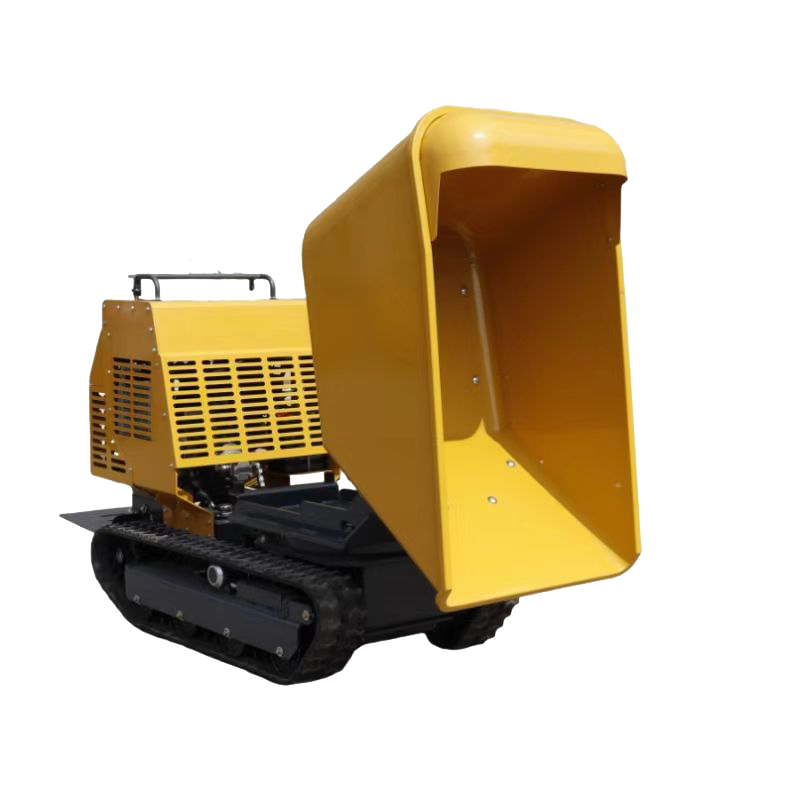

Mini Dumper HT1200
HT1200
Model
850kg
Operation Weight
594dm³
Bucket Capacity
Share to

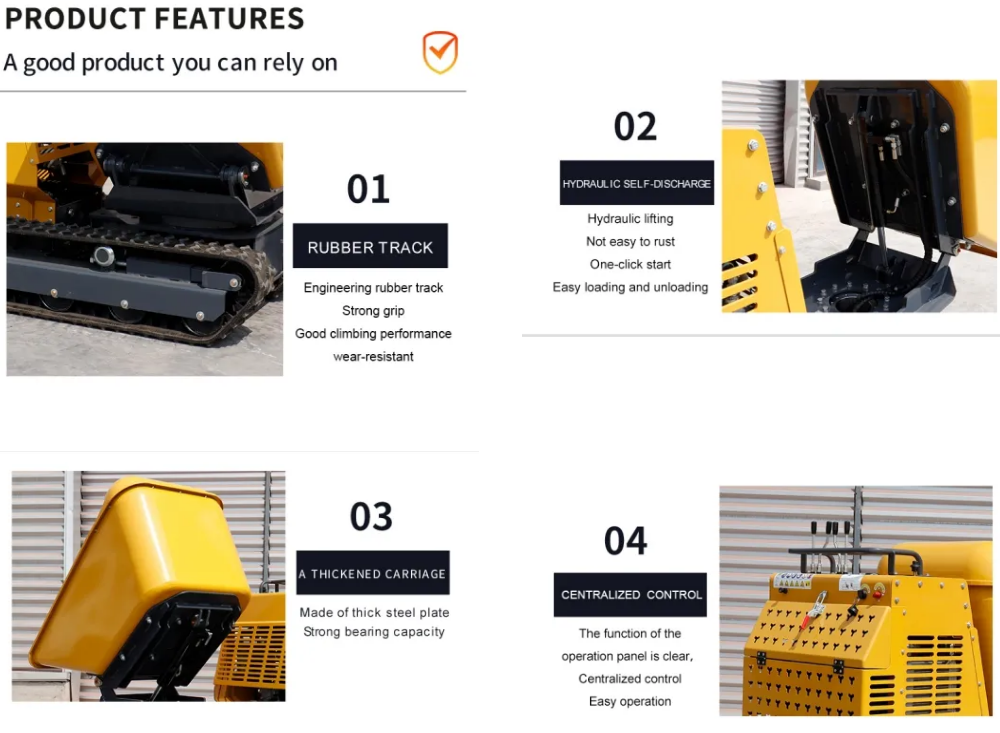

- Small dump trucks feature engine-driven, electric hydraulic systems.
- Compact size allows efficient operation even in narrow or hard-to-reach areas.
- Easy to clean, lightweight and maneuverable.
- Wide tracks reduce ground pressure, minimizing ground disturbance during work, ensuring a smoother ride and protecting both machine and operator.
- Product Description
- 多图切换右边
-
Product Description
Mini crawler dumper is small machine with strong power,suitable for different working condition,such as home,garden,golf course,waste treatment plant,small construction, road maintenance,mining.
Mini crawler dumper has heavy duty bucket suitable for various work; Rubber tracks offer the bestof low ground pressure.
Details of Product Structure
Technical parameters

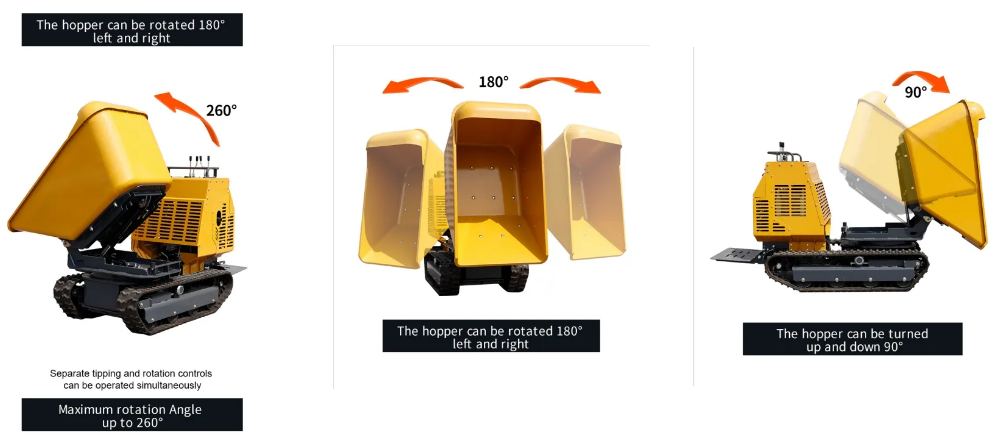

Product Model HT-1200 Engine Model Briggs&Stratton Optional engine KOOP Eur5,RATO Engine Type Single cylinder,OHV,4-stroke,air cooling displacement (ML) 420CC Rated Power (kw/rpm) 13.5HP/3600rpm Fuel Type 92#Gasoline Fuel Tank capacity (L) 6.5 Net weight (KG) 850 Maximumload capacity (KG) 1200 Body size (MM) (Footboard not included) 2060*900*1400 Pedal machine size included (MM) 2470*900*1400 Container size (MM) 1400~800"600 Chassis width (MM) 900 Maximum rotation Angle (°) 260 Rotation mode Hydraulic rotation Tipping interval (MM) 320mm track width (MM) 180 Track grounding length (M) 1000 Chassis groundclearance (MM) 140 Cargo boxCapacity (dm³) 594 Tipping Systme Hydraulic Tipper Tilting Angle (°) 90 Clearance after tipping container (MM) 300 Walking speed (km/h) 5 Climbing abilty (°) 25 -
- Small dump trucks feature engine-driven, electric hydraulic systems.
- Compact size allows efficient operation even in narrow or hard-to-reach areas.
- Easy to clean, lightweight and maneuverable.
- Wide tracks reduce ground pressure, minimizing ground disturbance during work, ensuring a smoother ride and protecting both machine and operator.
