Mini Dumper HT500-5
HT500-5
Model
880kg
Operation Weight
290dm³
Bucket Capacity
Share to
- Small dump trucks feature engine-driven, electric hydraulic systems.
- Compact size allows efficient operation even in narrow or hard-to-reach areas.
- Easy to clean, lightweight and maneuverable.
- Wide tracks reduce ground pressure, minimizing ground disturbance during work, ensuring a smoother ride and protecting both machine and operator.
- Product Description
- 多图切换右边
-
Product Description
China mini dumper manufacturing factory, factory CE,IS9001certification my friend,Welcome to Hunan Hongchang Machinery Co.,Ltd
A company specializing in the manufacture of mini dumper in China, You can choose any type of mini dumper you need and support various customizations.
Looking forward to cooperating with you very much.
Send Inquiry,Get exclusive services and exclusive discounted prices.
Technical parameters

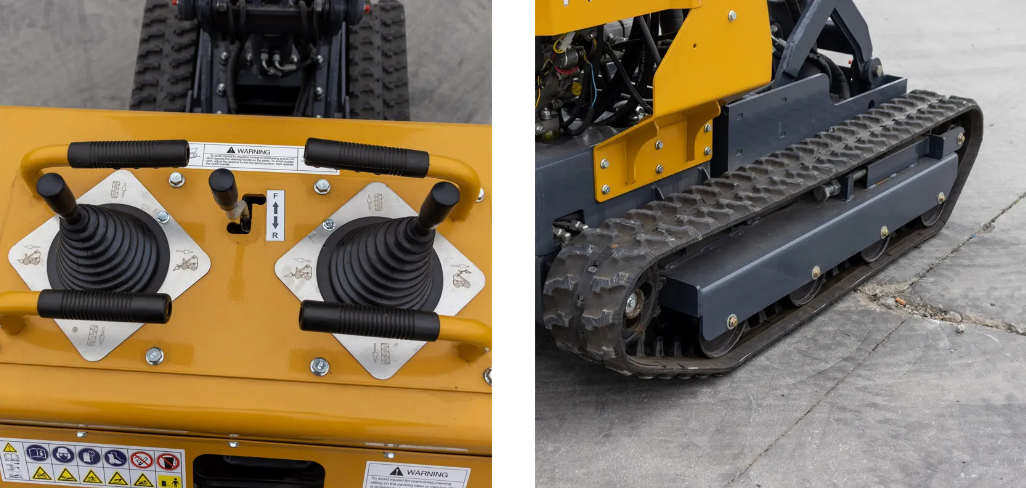

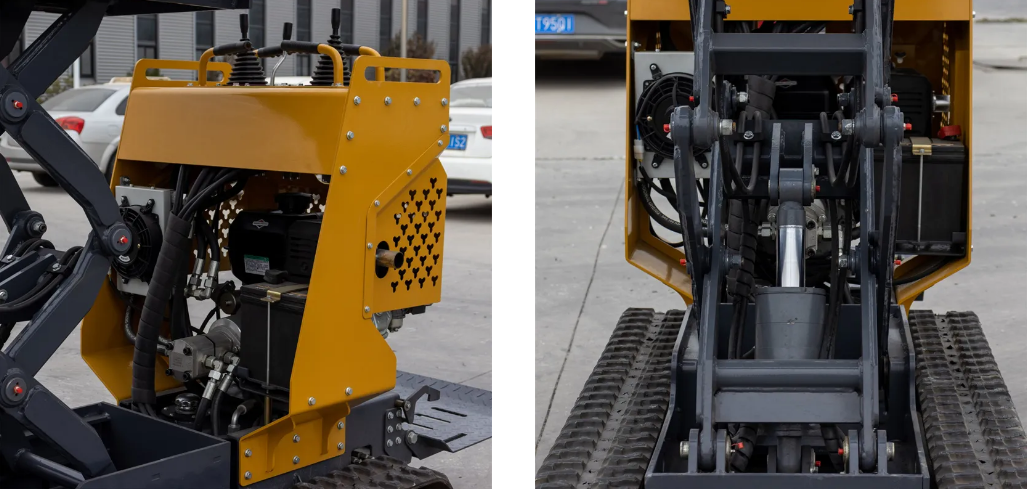

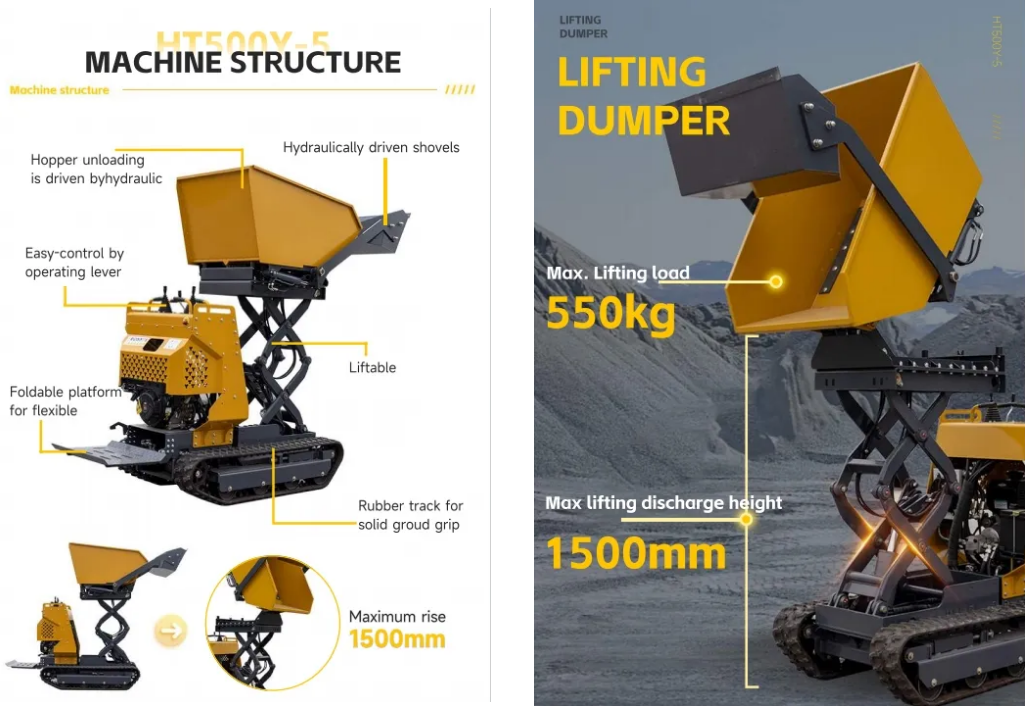

Total Weight 880kg Engine Model BRIGGS STRATTON 420 Maot loading weight horizontal transport 1000kg Engine Type Single cylinder,OHV,4-strokeair cooling Max.Lifting load 550kg displacement 420CC ML Machin sizelrhout podal.without buckot) 1800*880*1920mm Rated Power 13.5HP/3600rpm Bucket size with foot pedal 2700*880*1920mm Fuet Type 92#Gasoline Container size 1220*800*600mm Fuel Consumption ≤0.7g/kw-h Chassis width 850mm Fuel Tank capacity 6.5L Cargo box Capacity 290dm° Engine oil capacity 1.1L Tipping Systme Hydraulic Tipper Max liftng discharge height 1500mm Tipping Ange 100° Tipping interval 350mm Walking Speed 3km/h track width 180mm Minimum Turning radius 1300mm Track grounding length 915mm Track gauge 670mm Chassis ground clearance 100mm Chassis ground clearance 100mm Climbing albillty 25° Hydraulic tank capacity 12L(With radiator) Detailed product pictures
Product showcase
-
- Small dump trucks feature engine-driven, electric hydraulic systems.
- Compact size allows efficient operation even in narrow or hard-to-reach areas.
- Easy to clean, lightweight and maneuverable.
- Wide tracks reduce ground pressure, minimizing ground disturbance during work, ensuring a smoother ride and protecting both machine and operator.
Previous :
Next :
Download related
25-08-29 16:05
1.9MB
Hot Product
| Weight | 960kg |
| Engine | electric |
| Capacity | 0.5m³ |
| Rated Power | 5.5KW AC/48V/210AH |
| Fuel Type | electric |
