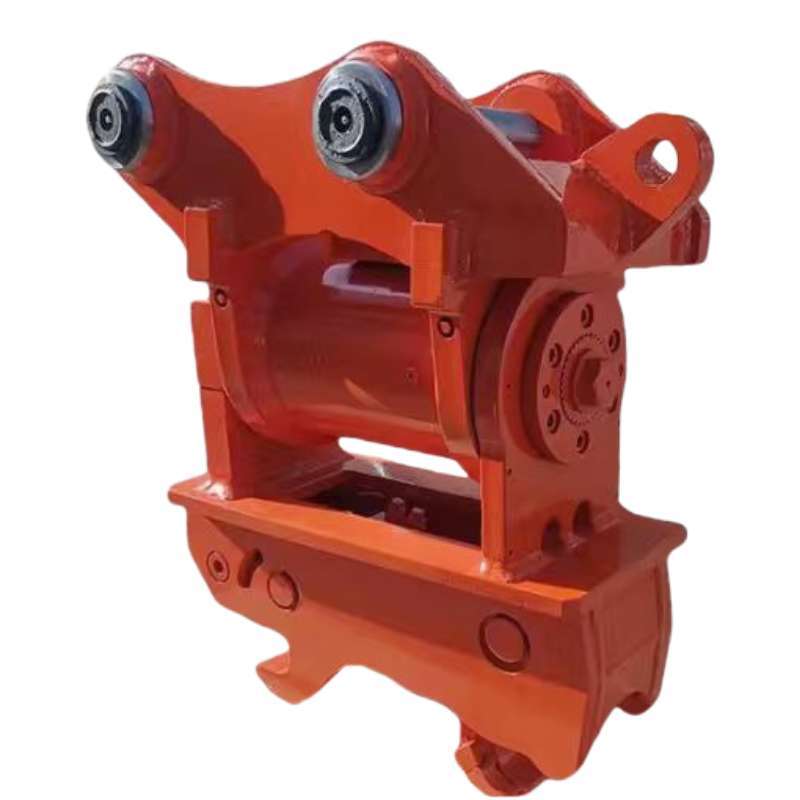

Tilt quick coupler (Steelwrist system Europe)

A key excavator attachment, mainly enabling quick replacement of different work tools with added tilt adjustment.

Mobile :

+86 18574392003

WhatsApp :

‪+1 (312) 560‑8523‬

E-mail :

sale@oritron.com.cn

Inquiry
Hot Product
Send Emails
Download

Category:

Products

Excavator Quick Coupler

Excavator Attachment

Key Word:

  • Product Description
  • 多图切换右边

  •

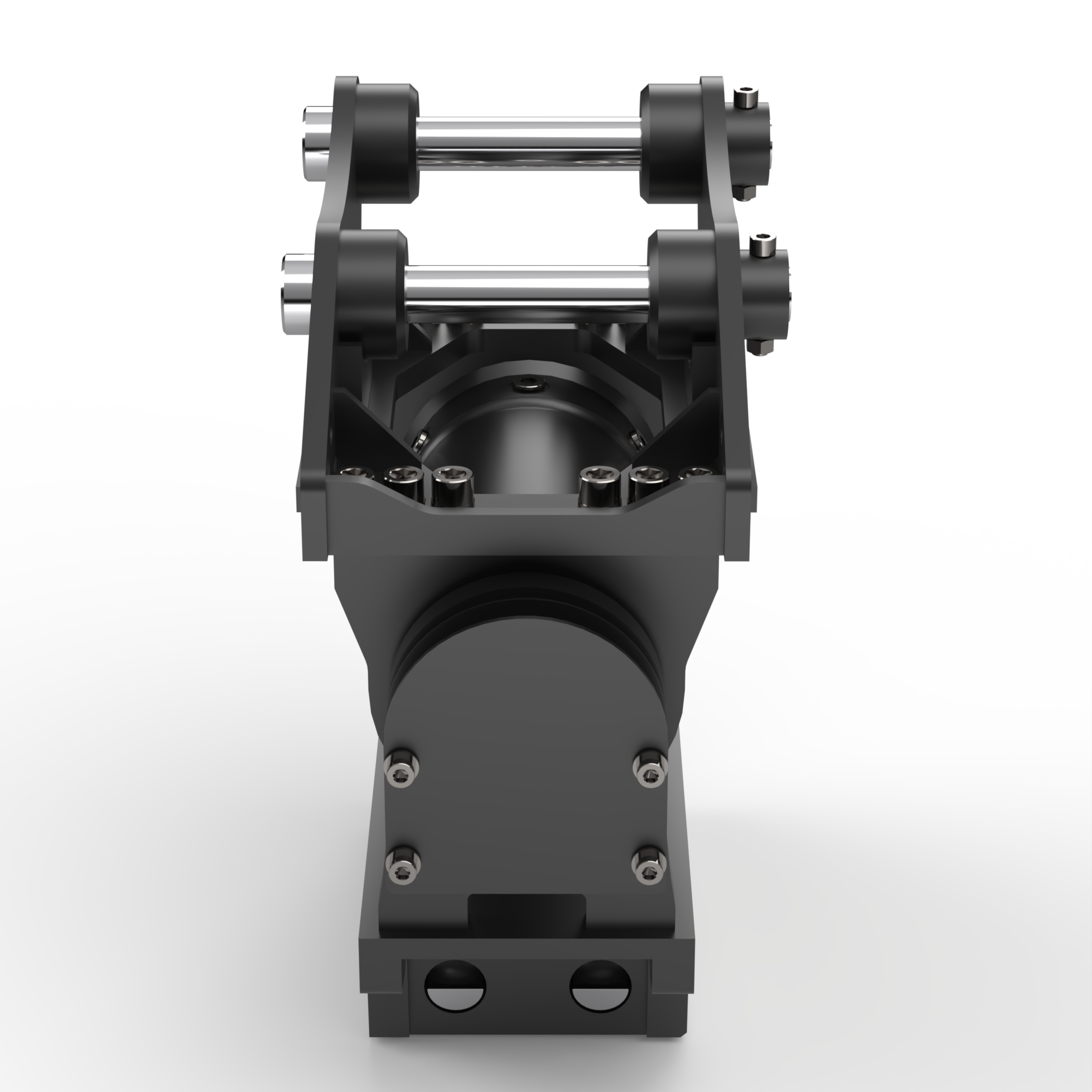

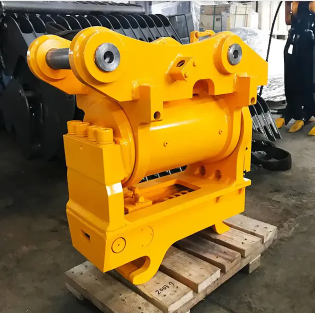

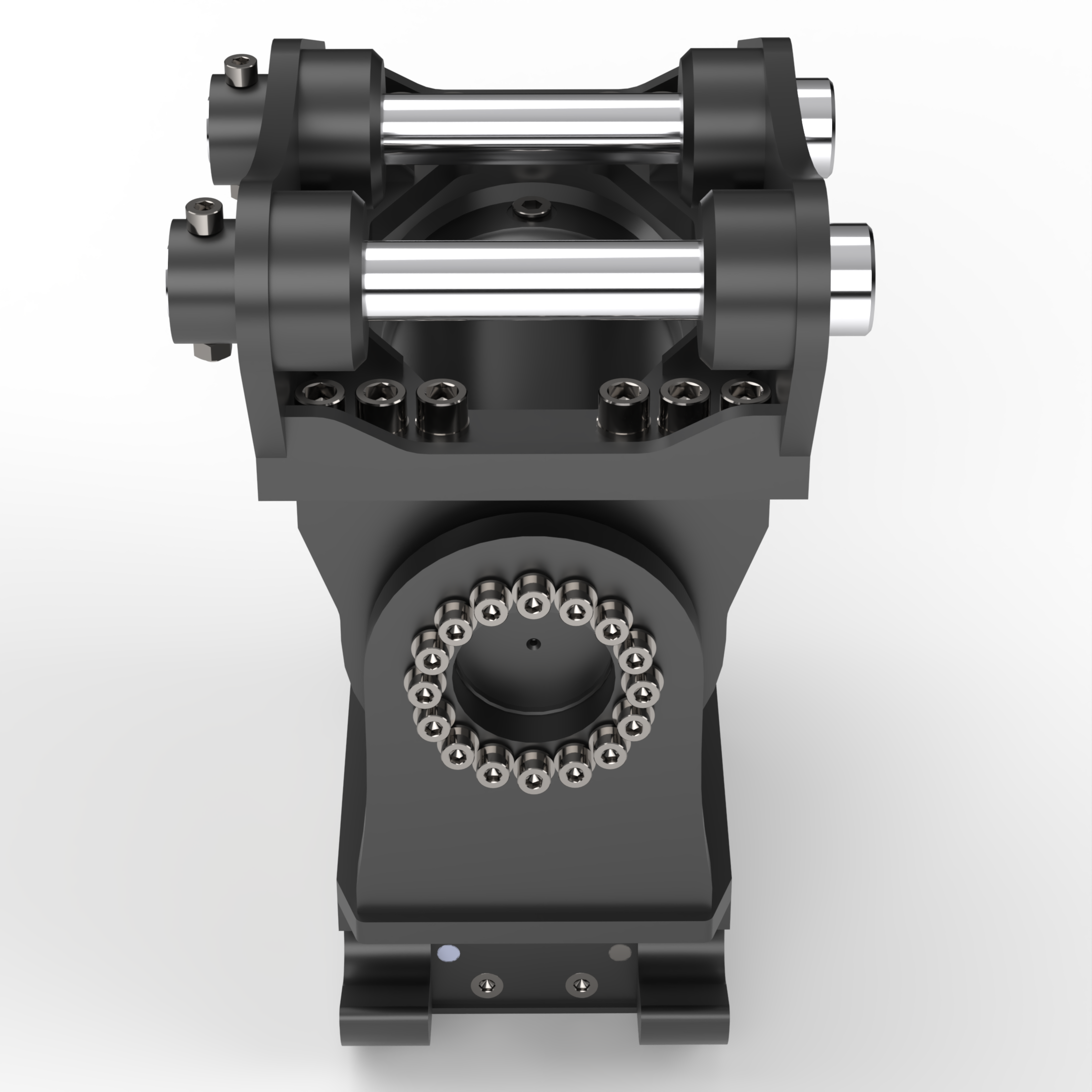

        The Tilt Quick Coupler is a high-performance attachment designed to provide unmatched flexibility and efficiency for excavator operations. Featuring a bolted modular body, durable 42CrMo pins, and a tilt actuator capable of rotating up to 180°, this coupler ensures precise control and adaptability for a wide range of tasks.





    Enhanced Precision: 180° tilt capability provides superior control for grading, sloping, and contouring tasks.

    Durability: Heat-treated 42CrMo pins and modular body design ensure long-term reliability.

    Safety: Auto dual safety latches on both A-type and S-type couplers prevent accidental detachment.

    Versatility: Compatible with a wide range of buckets and attachments, making it suitable for diverse applications.





    Tilt quick coulper technical parameters

    Operating weight(kg)

    		135

    Width  (mm)

    		304

    Length  (mm)

    		493.5

    Height (mm)

    		524.5

    Tilt angle

    		180°

    Hydraulic pressure max.

    		3-20Mpa

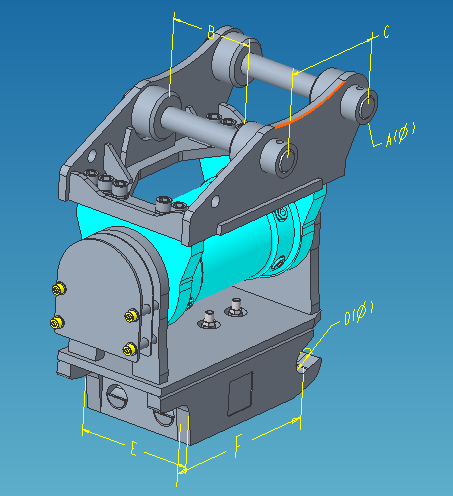

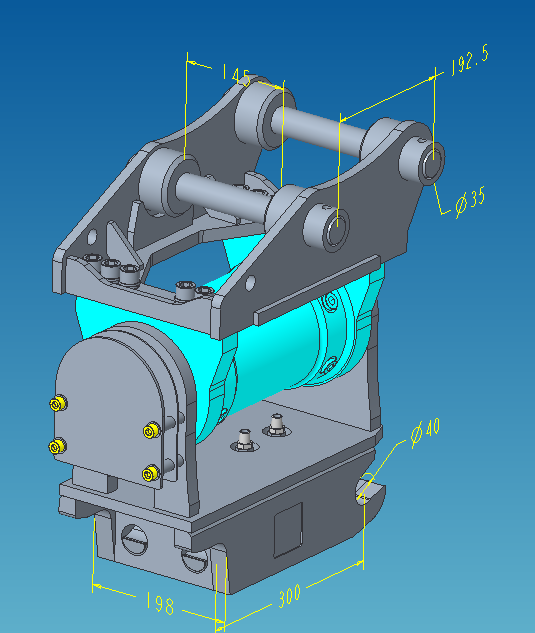

    upper installation dimension

    		installation width(B) (mm)145    (customizable based on needs)
    axis diameter(A)  (mm) 35    (customizable based on needs)
    axis distance(C)  (mm) 192.5 (customizable based on needs)

    bottom installation dimension

    		installation width(E)  (mm)198
    axis diameter(D)  (mm)40
    axis distance(F)  (mm)300

    Oil Port

    		M16×1.5

    Output Torque

    		1100Nm (15MPa)

    Maximum Starting Pressure

    		3MPa

    Working Pressure

    		15MPa

    Test Pressure

    		25MPa

    Displacement

    		538mL

    Temperature Range

    		-20℃ to +80℃

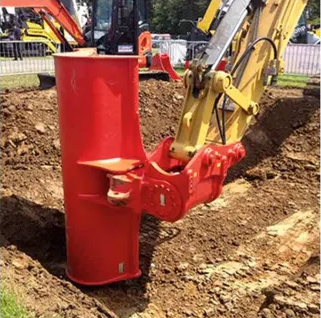

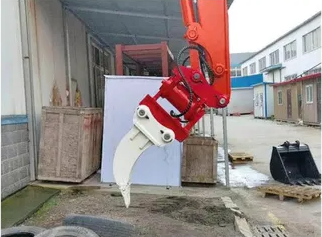

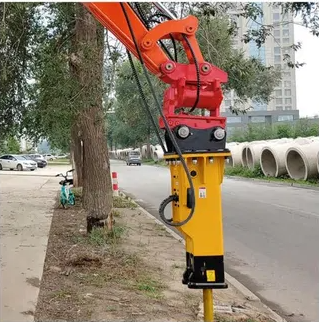

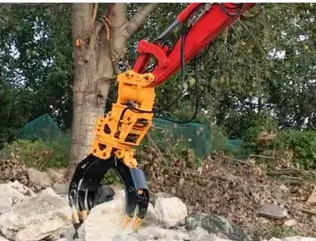

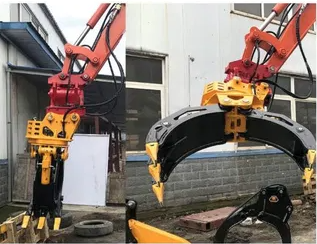

         Tilt rotary motor is ideal for performing every day tasks, or completing jobs that haven't been tried. Contractors rely on our equipment for cleaning ditches,clearing land, digging beveled trenches, spreading rip-rap, and positioning brushcutters, movers and hydraulic hammers.
