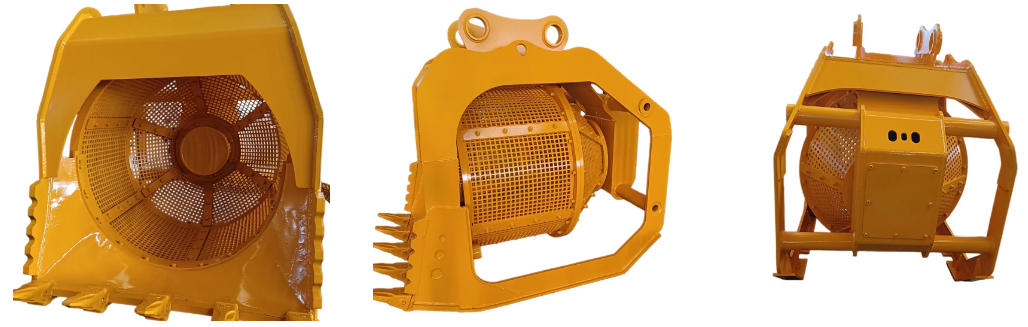

Excavator Screen Mesh Screening Bucket
Category:
Key Word:
- Product Description
- 多图切换右边
-

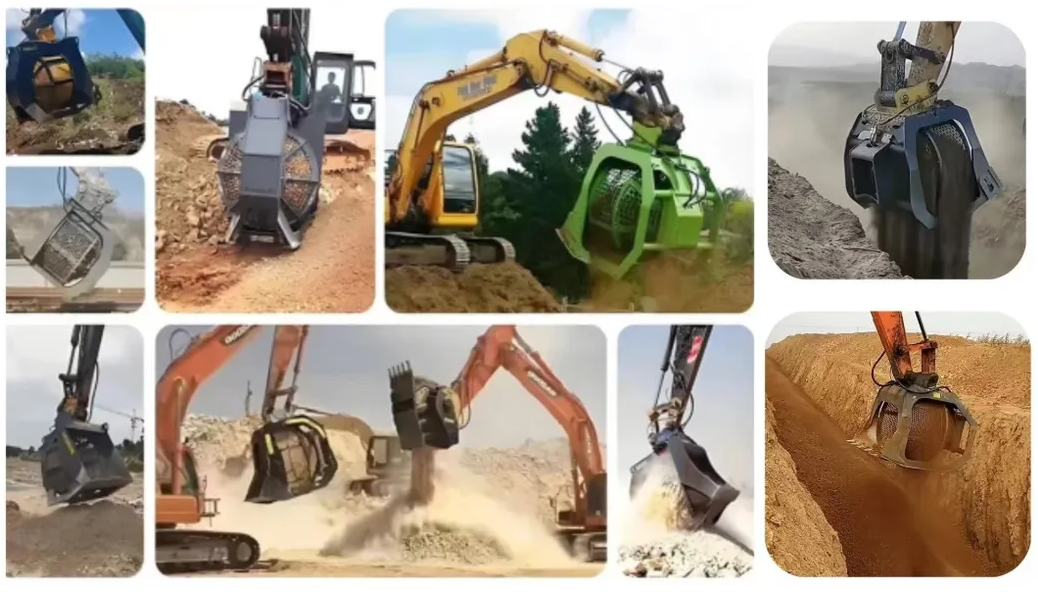

Applicable Fields
Sort and separate stones, concrete fragments, and recyclablematerials.
Product Features
1.The body is made of special wear-resistant materials, reducingnormal wear and tear during use.
2.The motor adopts an ltalian joint venture brand, with stableoperation and long service life.
3.Stable and reliable operation, low investment cost, energy conservation and environmental protection.
4.The screen mesh can be replaced according to the workingconditions
Product Model
ltem/Model
Unit
TD-400
TD-800
TD-1200
TD-1600
TD-2400
Screen drum Diameter
Mm
700
900
1100
1500
1700
Set up pressure
Bar
130
170
170
170
170
Cylinder Volume
L/min
20
75
120
120
120
Capacity
M³
0.40
0.80
1.20
1.60
2.40
Dimensions
Mm
1300×800×1050
1700×1100×1400
2000×1300×1750
2000×1640×2100
2400×1900×2500
Weight
Kg
430
920
1700
2200
3300
Suitable excavator
Ton
5.5-10
10-18
18-24
18-35
30-38
Applicable Fields
