Land clearance rakes
Land clearance rakes are applied in the agricultural field, landscaping and garden beautification, as well as construction sites
Download
Category:
Key Word:
- Product Description
- 多图切换右边
-
Built for the toughest jobs such as moving tree roots, rocks and other large debris, a large gap - and consequently fewer, stronger tines - is best. A long distance from tine tip to the first support brace, maximises ground penetration. Tines are made from Hardox® 450 material for maximum strength and durability. The material is extremely strong, so each tine is capable of taking maximum breakout force of the excavator when tearing debris from the ground.
Land clearance rakes
Land clearance rakes
Land clearance rakes

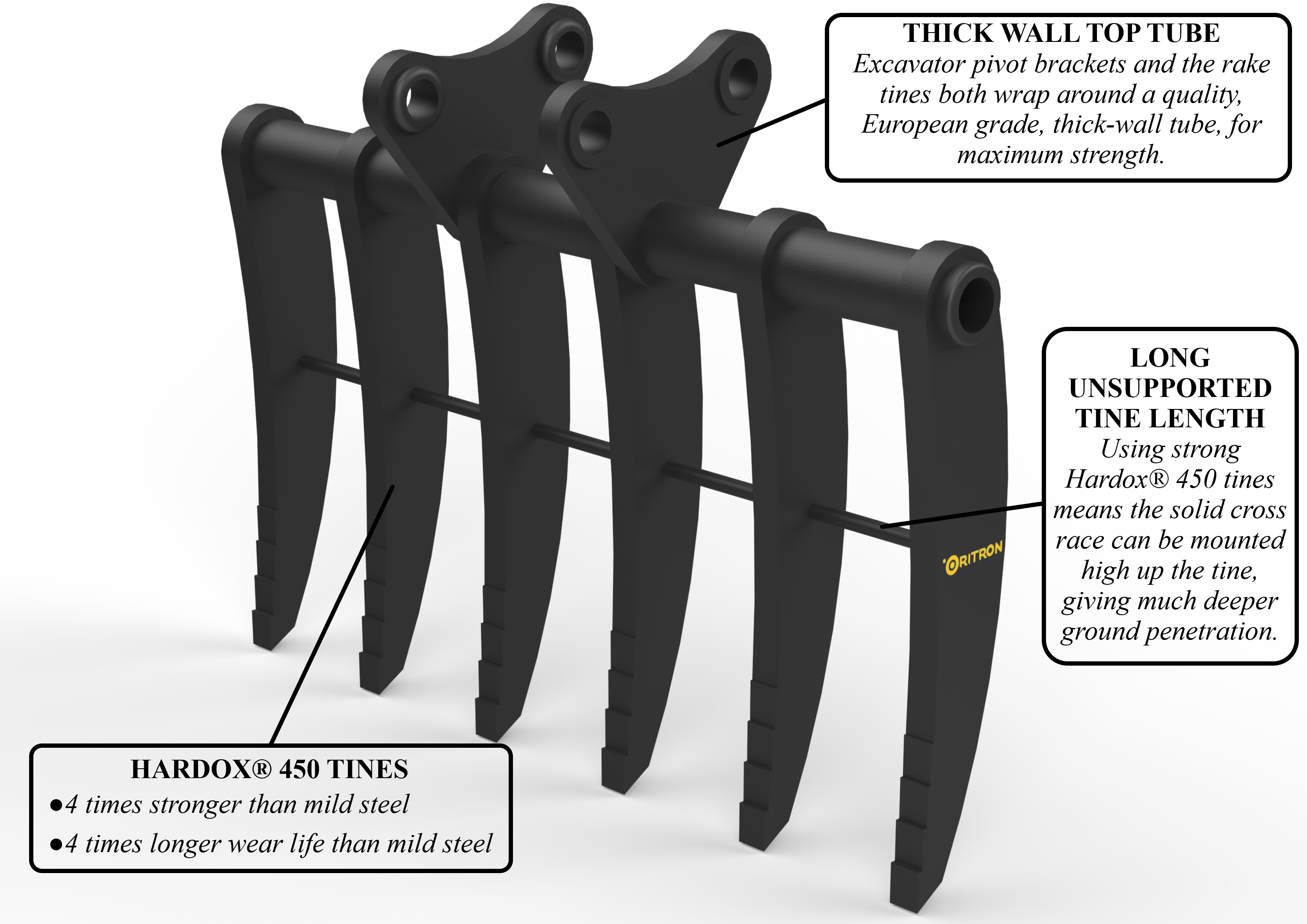

1、Both the excavator pivot bracket and the tines are surrounded by a high-quality, thick-walled tube of graded material to achieve maximum strengt
2、Using StrongHardox®450 Tines means that solid crosses can be fixed to the tips, allowing for much deeper ground penetration.
3、 HARDOX®450 TINES：4 times stronger than mild steel，4 times longer wear life than mild steel
Land clearance rakes technical parameters
Model
Bottom Width (mm)
tinestines
Suitable for excavators(ton)
OR-LC1
24“/600mm
6Hardoxtine
0.5-0.9
OR-LC2
36“/900mm
8Hardoxtine
1.0-3.2
OR-LC3
36“/900mm
5Hardoxtine
2.0-3.9
OR-LC4
36“/900mm
6Hardoxtine
2.0-3.9
OR-LC5
36“/900mm
9Hardoxtine
2.0-3.2
OR-LC6
42“/1050mm
7Hardoxtine
3.0-3.9
OR-LC7
48“/1200mm
5Hardoxtine
10.0-14.0
OR-LC8
48“/1200mm
6Hardoxtine
4.0-9.0
OR-LC9
48“/1200mm
8Hardoxtine
6.0-9.0
OR-LC10
48“/1200mm
9Hardoxtine
3.0-3.9
OR-LC11
72“/1800mm
8Hardoxtine
14.0-24.0
Land Clearance Rake Specifications
Made in China :You can rest assured that every bucket on our website is produced in our own factory.
Quality :Since we adopt an in-house production model, we can ensure that both the raw materials used in our products and their manufacturing quality are guaranteed.

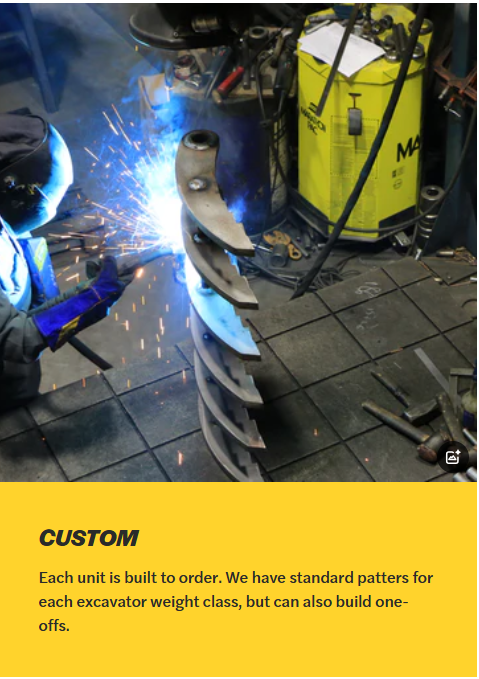

Custom: Each unit is built to order. We have standard patters for each excavator weight
