Broom Sweeper
Category:
Key Word:
- Product Description
- 多图切换右边
-
Product Description
The closed-type sweeper is hydraulically driven and can achieve sweeping in both forward and reverse directions. The brush slices effectively collect dust and particulate matter in the bucket, and a replaceable wear-resistant cutting edge plate is installed at the bottom. An optional side brush can be used for sweeping along roadsides, walls, and in drainage ditches. A dust suppression water sprinkling device is also available as an option. This attachment can be installed on machines such as skid steer loaders and loaders for sweeping, loading, and dumping garbage, and it can be applied to highways, major overhauls of expressways, construction, industrial, and municipal projects.
Technical parameters
Criterion
unit
60"-560
66"-560
72-560
72"-670
84"-670
Working width
mm
1524
1676
1828
1828
2130
Diameter of the Brush Bristles
mm
560
560
560
670
670
Bucket Capacity
m³
0.32
0.35
0.4
0.5
0.55
Working Pressure
mpa
16
16
16
16
16
Working Flow Rate
L/mm
50-75
50-75
50-75
50-125
50-125
Weight
kg
380
420
520
590
600
Length
mm
1895
2050
2200
2200
3500
Width
mm
1350
1350
1350
1560
1560
Height
mm
620
620
620
720
720

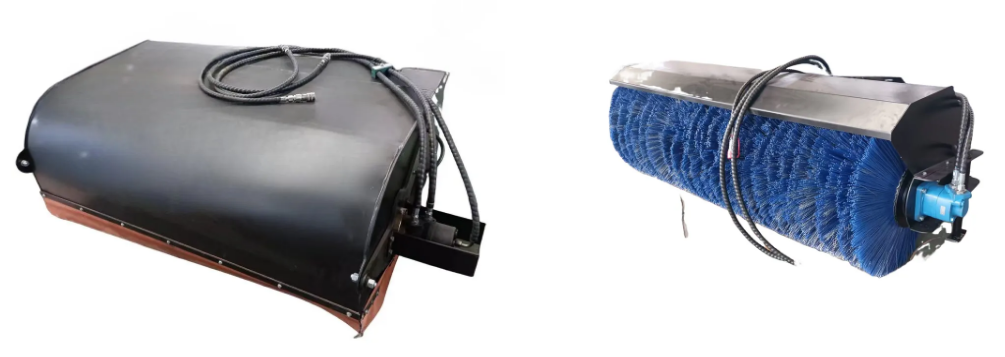

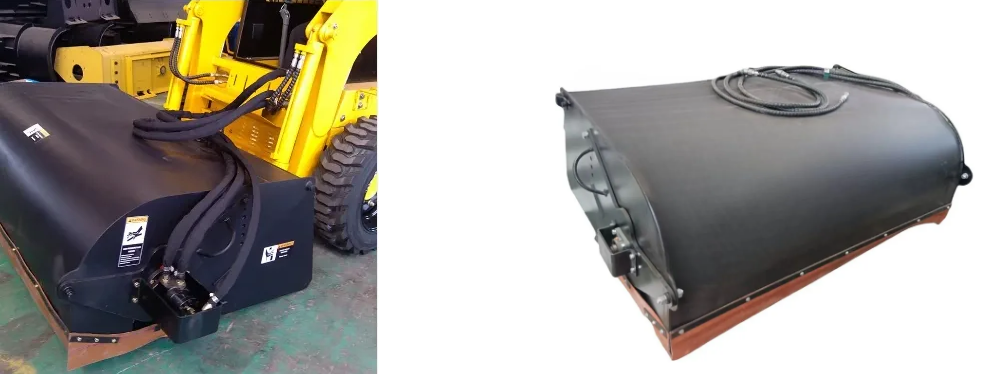

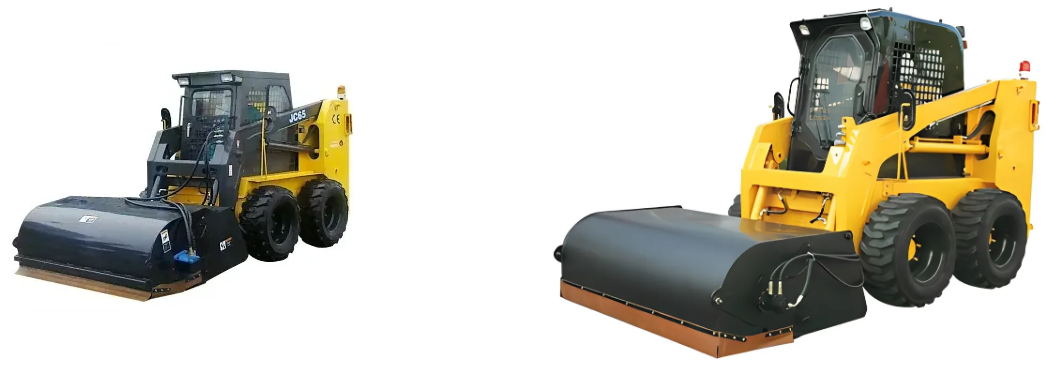

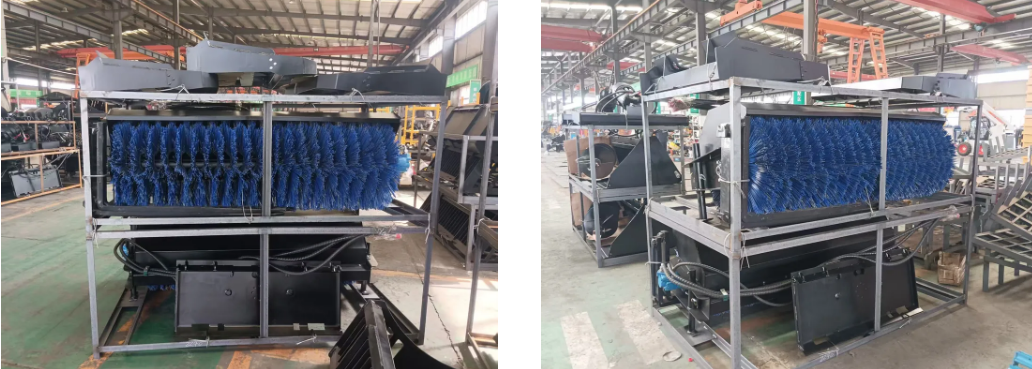

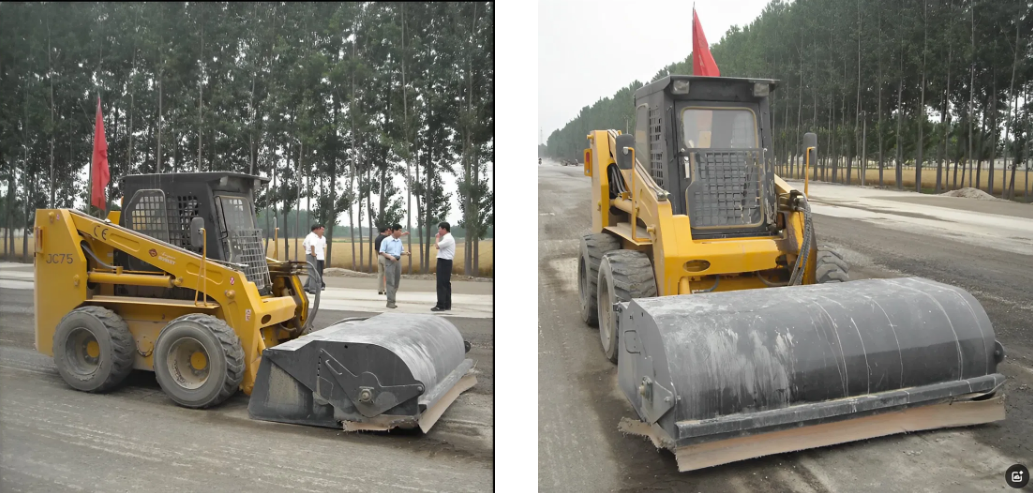

Product Display
