ORSL1212DC
ORSL1212DC
Model
12m
Working height
Electric
Drive type
Share to
1,Proportional control handle enables speed - controlled lifting and traveling at any desired rate.
2,Travel and steer at full height, facilitating operation and improving efficiency
3,One-way extended platform increases the operation radius and improves the ability to cross obstacles.

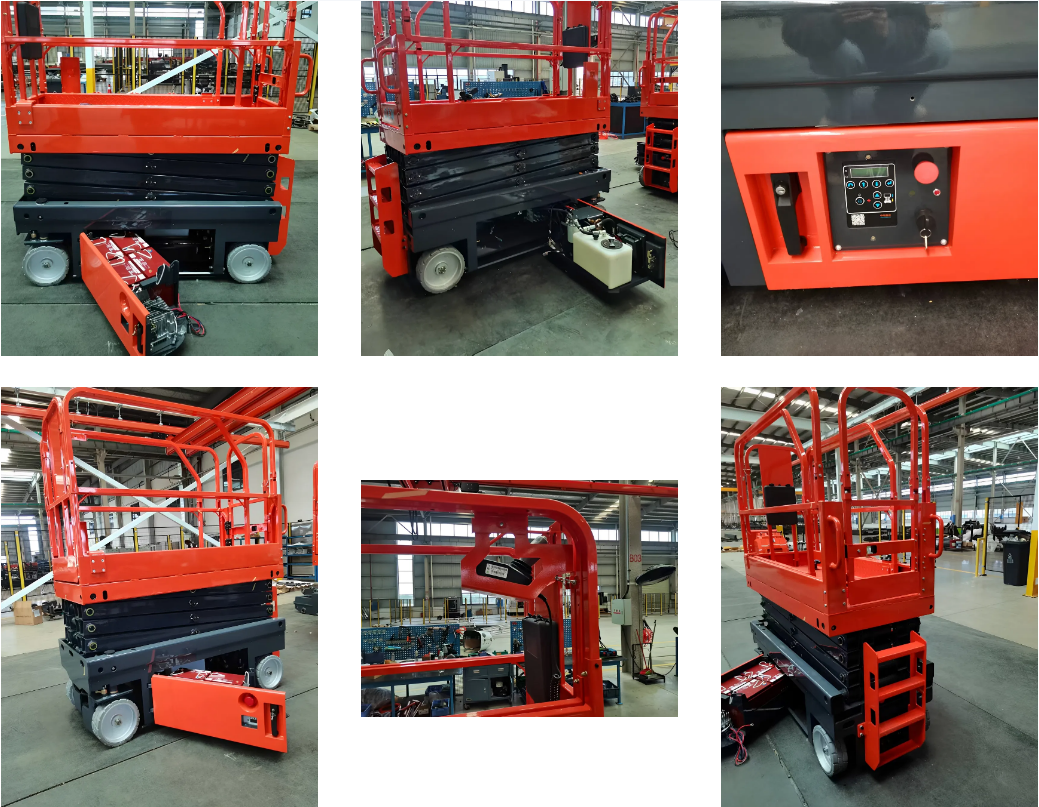

4,The box bodies on both sides of the chassis can be swiveled out, which is convenient for inspection.
- Product Description
- 多图切换右边
-
Product Description

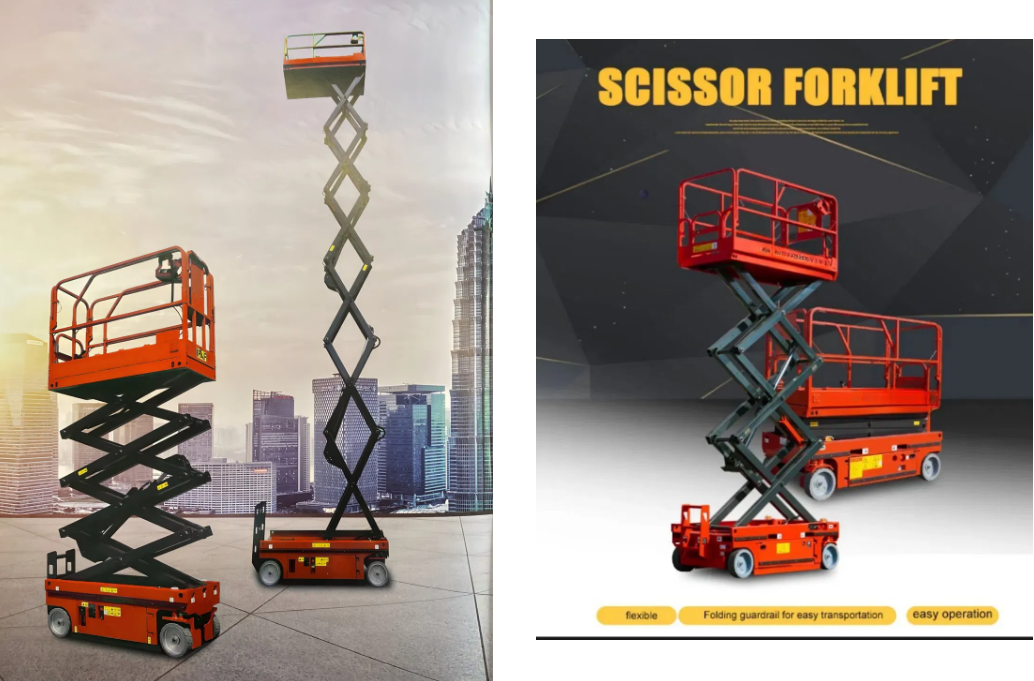

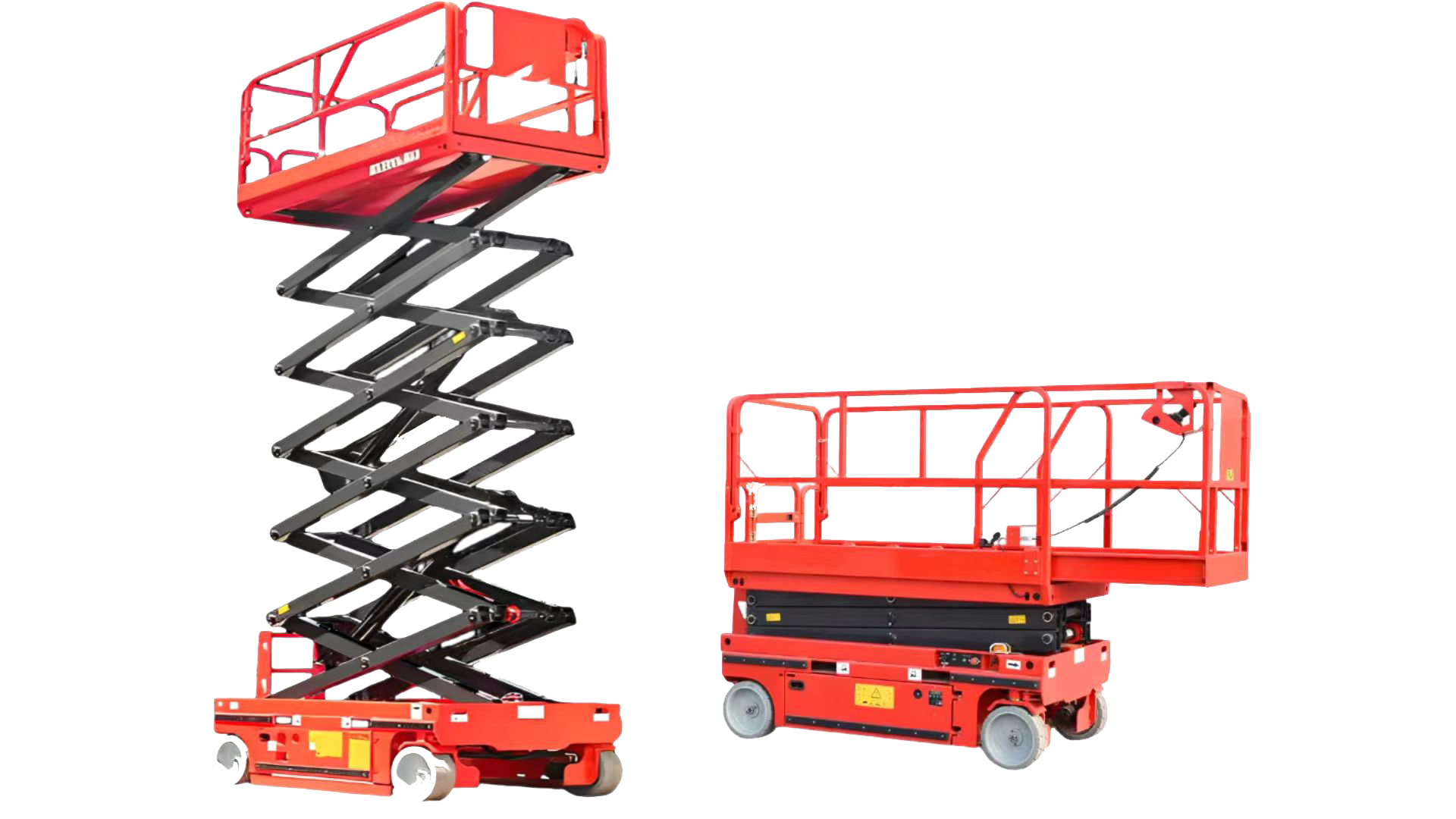

Electric scissor - type aerial work platform
1,Proportional control handle enables speed - controlled lifting and traveling at any desired rate.
2,Travel and steer at full height, facilitating operation and improving efficiency
3,One-way extended platform increases the operation radius and improves the ability to cross obstacles.
4,The box bodies on both sides of the chassis can be swiveled out, which is convenient for inspection.

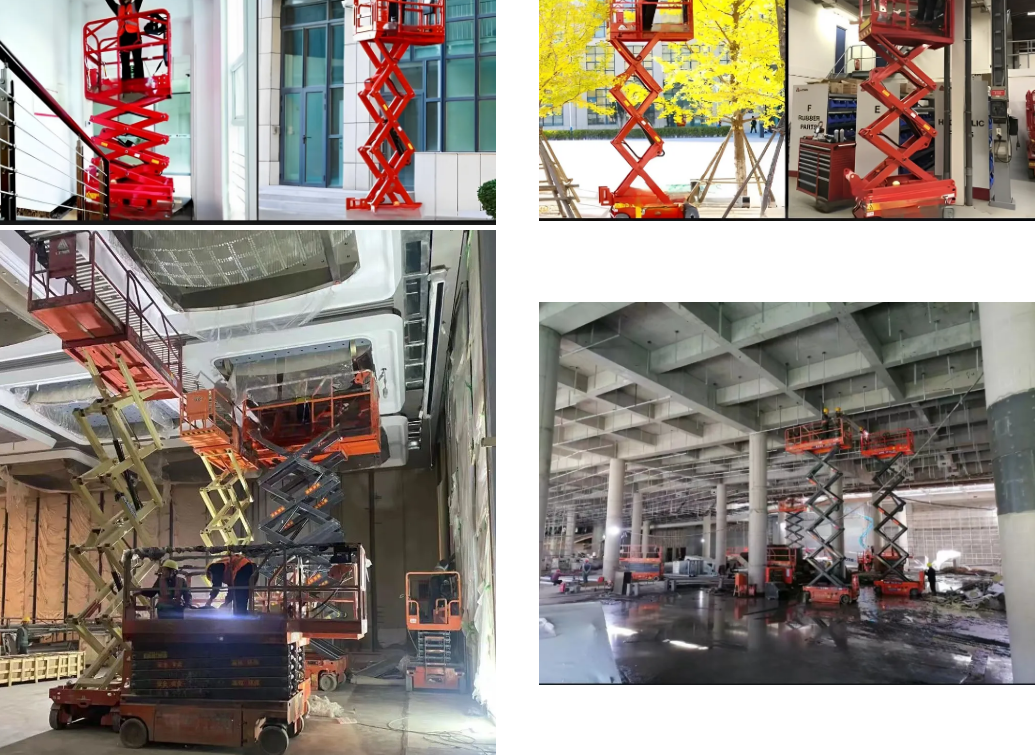

Application scenarios
Electric - driven scissor - type aerial work platforms have a wide range of application scenarios, including construction sites, industrial plants, commercial premises, logistics and warehousing facilities, transportation hubs, etc
Technical parameters
ltem
ORSL0607DC
ORSL0807DC
ORSL1008DC
ORSL1212DC
ORSL1412DC
Maximum Working Height
6.5m
8m
12m
12m
14m
A-Maximum Platiorm Height
4.5m
6m
10m
10m
12m
B-Stowed Height
095m
1.05m
1.36m
1.36m
1.49m
C-Work Platform Length
1.29m
1.7m
2.27m
2.27m
2.27m
Platform Extension Size
0.6m
0.9m
0.9m
0.9m
0.9m
D-Work Platform Width
0.7m
0.74m
1.15m
1.15m
1.15m
E-Height-Stowed (Guardrail Raised)
2.06m
2.17m
2.49m
2.49m
2.63m
Height-Stowed(Guardrail Folded)
1.7m
1.79m
1.95m
1.95m
2.09m
F-Overall Machine Length
1.44m
1.86m
2.47m
2.47m
2.47m
G-Overall Machine Width
0.76m
0.76m
1.17m
1.17m
1.17m
H-Axle Distance
1.05m
1.38m
1.87m
1.87m
1.87m
Ground Clearance(Stored)
0.06m
0.07m
0.11m
0.11m
0.11m
J-Ground Clearance(Raised)
0017m
0.02m
0.02m
0.02m
0.02m
Rated Load
240kg
230kg
320kg
320kg
320kg
Extension Platform Safe Working Load
100kg
113kg
113kg
113kg
113kg
Maximum Number of Workers
2
2
2
2
2
Travel Speed (Stored)
3.6km/h
3.0km/h
3.2km/h
3.2km/h
3.2km/h
Travel Speed(Elevated)
0.8km/h
0.8km/h
0.8km/h
0.8km/h
0.8km/h
Inner Turning Radius
0.4m
0m
Om
0m
0m
Outer Turning Radius
1.6m
1.67m
2.2m
2.2m
2.2m
Rise/Fall Time
20s/22s
20s/27s
55s/38s
55s/38s
62s/42s
Maximum Gradeability**
30%
25%
25%
0.25
0.25
Maximum Allowable Working Angle
1.5°/3°
1.5°/3°
1.5°/3°
1.5°/3°
1.5°/3°
control
Proportional contro
Proportional control
Proportional control
381mmx127mm
381mmx127mm
Drive
DC Motor Rear-drive
DC Motor Front- drive
DC Motor Front- drive
Proportional control
Proportional control
Multi-disc Brake
Dual Rear Wheels
Dual Rear Wheels
Dual Rear Wheels
DC motor front drive
DC motor front drive
Tire:Solid,Non-imprinted(DiameterxWidth)
230mm×80mm
305mm*100mm
381mm*127mm
Dual front wheels
Dual front wheels
Battery
2×12V/85Ah
4*6V210AH
4-6v/240AH
4x6V/240Ah
4x12V/300Ah
Charger
24V/15A
24V/30A
24V/30A
24V/30A
24V/30A
Weight
900kg
1530kg
2940kg
2950kg
3000kg
-
1,Proportional control handle enables speed - controlled lifting and traveling at any desired rate.
2,Travel and steer at full height, facilitating operation and improving efficiency
3,One-way extended platform increases the operation radius and improves the ability to cross obstacles.
4,The box bodies on both sides of the chassis can be swiveled out, which is convenient for inspection.
